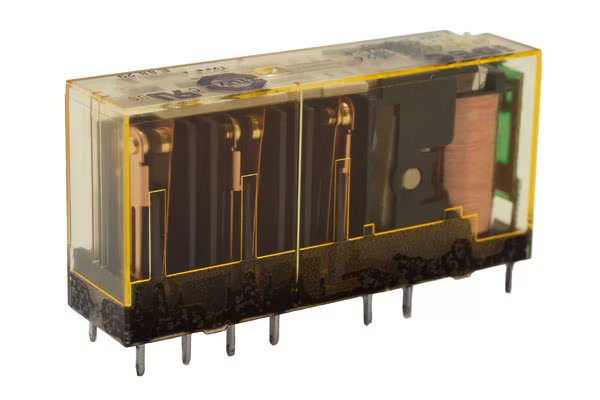

IDEC RF1V RELAY 4NO - 2NC DC 24V RF1V-4A2B-D24

Product Code: RF1V-4A2B-D24

  • Without LED Indicator Force guided contact mechanism (EN50205 Type A TÜV approved) Finger-safe DIN rail mount socket and PC board mount socket
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operational Temperature Range (°C) -40 to 85
Operating Humidity 5 to 85%
Brand IDEC
Product Type Force Guided
Coil Voltage DC (V) 24
Contact Resistance (mO) 100
Insulation Resistance (MO) 1000
Maximum Switching Capacity AC (V) 250
Maximum Switching Capacity AC (VA) 1500
Maximum Switching Capacity DC (V) 30
Maximum Switching Capacity DC (W) 180
Maximum Switching Current (A) 6
Minimum Mechanical Life 10,000,000
No. of Normally-closed Contacts 2
No. of Normally-open Contacts 4
No. of Poles 6
Power Consumption (W) 0.5
Rated Current (mA) 20.8
Resistance to Shock (m/s²) 200
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 50W x 24H x 13D
Weight (g) 23

Description

The IDEC RF1V-4A2B-D24 is a force-guided relay with a 4NO - 2NC configuration, operating on a 24V DC power supply. It features a force-guided contact mechanism that complies with EN50205 Type A TÜV standards, ensuring reliable and safe operation. The relay comes equipped with both finger-safe DIN rail mount and PC board mount sockets for versatile installation options. This model does not include an LED indicator.
