DEHN SADDLE CLAMP AL CLAMPING RANGE FOR D 8-10mm 365221 - Lightning & Surge Protection

Product Code: 365221

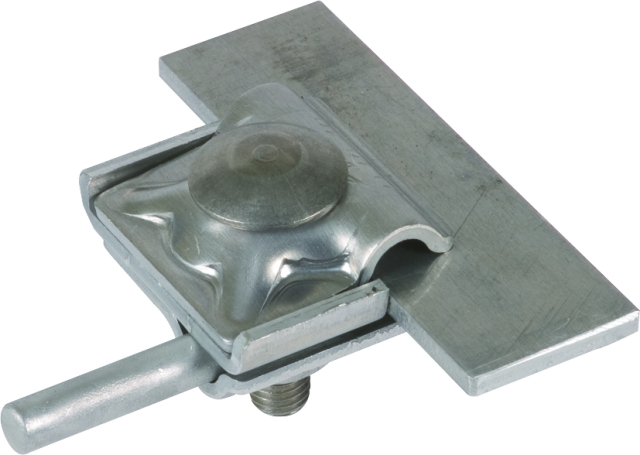

Seam clamp with enlarged contact surface For connecting round conductors with seams Angled, longitudinal or cross conductor routing

Specifications

Lid Screw Type	Flat round screw
Material	Aluminium
Screw Size	M10
Gross Weight (g)	93.6
Clamping Range (mm)	0.7-10
Suitable For	Diameter round conductor 8mm
Brand	DEHN
Product Type	Clamps and Connectors
Connector Type	Saddle Clamp
Surface Protection	Untreated
Dimensions (mm)	5W x 6H x 5D
Thickness (mm)	3
Weight (kg)	0.09
Weight (g)	91
Rod Diameter (mm)	8 - 10
Standards and Approvals	EN 62561-1
