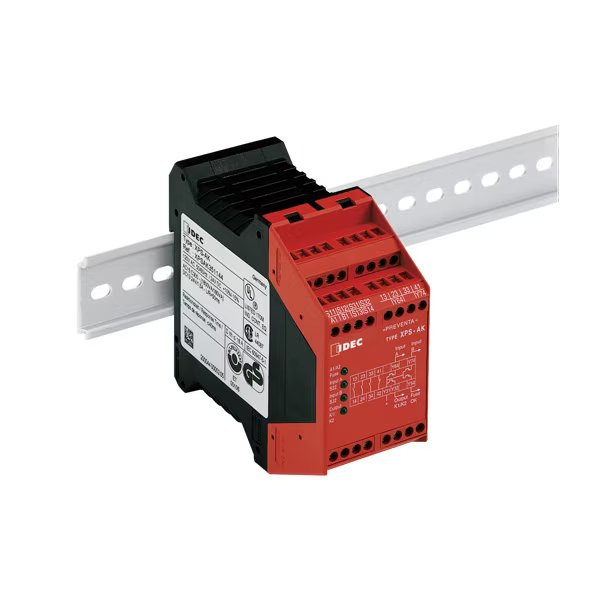

IDEC SAFETY_RELAY HR1S-AK311144

Product Code: HR1S-AK311144

  • EN ISO 13849-1 PLe Safety Cat 4 compliant and EN 62061 SIL 3 Removable and fixed terminal models LED status indicators Finger safe protection 35mm-wide DIN rail mounting Stop 0 & Stop 1 Categories MTTFd (year): up to 210 (depend on the model)
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Brand IDEC
Product Type Safety
Minimum Mechanical Life 10,000,000
Operating Voltage AC (V) 24
Operating Voltage DC (V) 24
Power Consumption (VA) 5
Power Consumption (W) 3
Rated Frequency (Hz) 50/60
Weight (g) 300

Description

The IDEC HR1S-AK311144 Safety Relay is engineered for high-level safety with compliance to EN ISO 13849-1 PLe, Safety Category 4, and EN 62061 SIL 3 standards. It offers both removable and fixed terminal models to accommodate various installation needs. The unit features LED status indicators for easy monitoring and finger safe protection for enhanced safety. Designed for 35mm-wide DIN rail mounting, it facilitates secure and straightforward installation. Additionally, the relay boasts an impressive MTTFd of up to 210 years, ensuring long-term reliability in critical stop 0 & stop 1 safety applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
