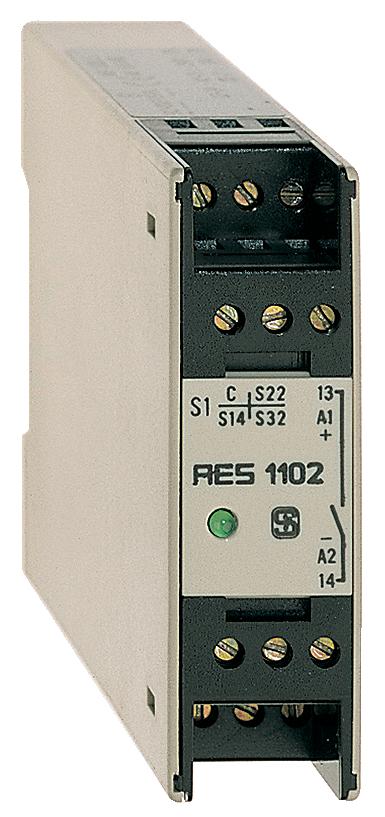

SCHMERSAL AES1102.2 SAFETY-MONITORING MODULE 101128796

Product Code: 101128796

  • Safety-monitoring module AES1102.1 (110VAC) STOP 0 functionality for emergency stopping Wire breakage detection feature Automatic reset function available Resets after disconnection of supply voltage Integral System Diagnostics included Equipped with 1 LED indicator Features 4 openers and 2 shutters
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Actuator Type Magnet
Enclosure Material Plastic, glass-fibre-reinforced
Mounting Type Snaps onto standard DIN rail to EN 60715
Storage Temperature (°C) -25 to 70
Maximum Ambient Temperature (°C) 75
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Gross Weight (g) 50
Net Weight (g) 50
Installation Conditions Not flush
Wire Cross-Section 0.25 mm
Enclosure Coating Material Painted
Brand SCHMERSAL
Product Type Safety Relay
Series AES
Working Principle Mechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-37-12-43
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC000030
ETIM 6.0 EC001029
eCl@ss Number, Version 11.0 27-37-12-90
Protection Class of Operating Resource 3
Cable Note All indications including the conductor ferrules.
Contact Material Metal, CuZn, gold-plated
Maximum Actuating Speed (m/s) 1
Maximum Cable Cross Section (mm²) 1.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 10
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 8.5
No. of Auxiliary Contacts 1
No. of Safety Contacts 3
Nominal Power (W) 2.4
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 30
Rated Maximum Operational Voltage DC (V) 24
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element NC contact, NO contact
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Thermal Test Current (A) 2.5
Height (mm) 100
Width (mm) 67.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Sensor Length (mm) 118
Sensor Height (mm) 129.5
Degree of Protection IP20
Pollution Degree 3
Standards EN IEC 61496-1 / EN IEC 61496-2

Description

Enhance your machine safety with the Schmersal AES series safety-monitoring module. Engineered for reliability, this module features Stop-Category 0 for emergency shutdowns and wire breakage detection to maintain operational integrity. Its automatic reset function ensures a quick recovery after power loss, while integral system diagnostics provide essential feedback through a single LED indicator. Equipped with four openers, two shutters, and one safety contact, it's designed to handle complex safety circuits. Operating at 230V with a low power consumption of 2.4W, it meets utilisation categories AC-15 (230 VAC/1.5 A) and DC-13 (24 VDC/1 A), making it an efficient choice for various applications in machine safety. Trust in the robust performance of Schmersal's trusted engineering for your critical safety needs.
