Housing Material	Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Storage Temperature (°C)	85
Minimum Ambient Temperature (°C)	-30
Minimum Storage Temperature (°C)	-40
Brand	SCHMERSAL
No. of Cable Glands	3
Cable Entry	3 x M16 x 1.5
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Contact Material	Silver
Latching Force (N)	5
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Minimum Mechanical Life	1000000 Operations
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Positive Break Travel (mm)	8
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Operational Current AC-15 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Current DC-13 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24 VDC
Rated Short-circuit Current (A)	1000
Switching Element	NO Contact, NC Contact
Switching Frequency	4000/h
Switching Principle	Slow Action, Positive Break NC Contact
Termination	Screw Terminals
Thermal Test Current (A)	10
Sensor Length (mm)	30
Sensor Width (mm)	52
Sensor Height (mm)	90
Degree of Protection	IP67
Pollution Degree	3
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Pushbuttons & Operator Devices

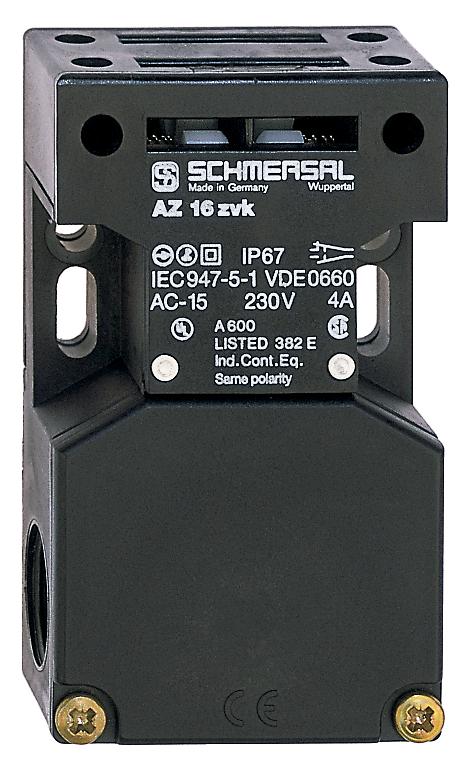

SCHMERSAL AZ 16-12ZVRK-M16-2254SAFETY SWITCHWITH SEPARATE ACTUATOR 101153566
