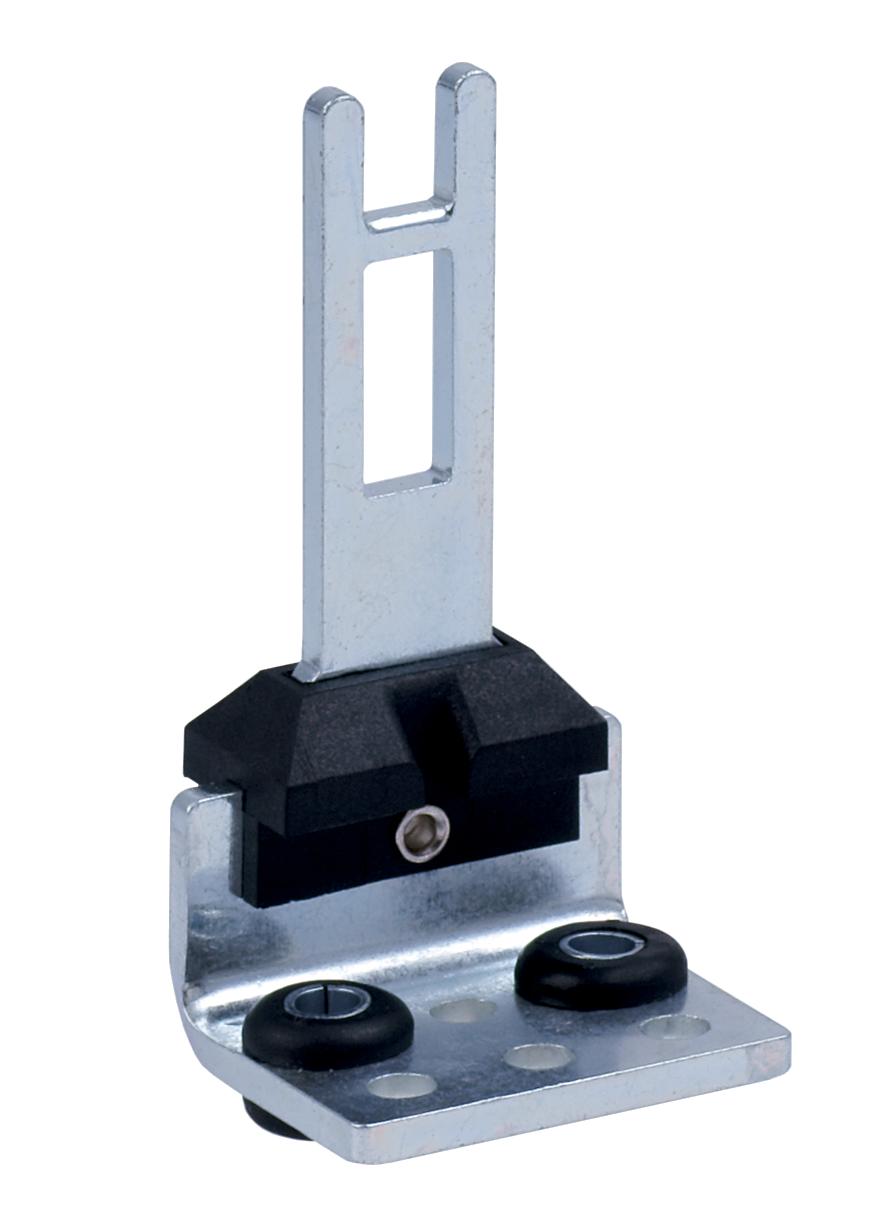

SCHMERSAL AZ3350-B5 KEY SAFETY SWITCH WITH SEPARATE ACTUATOR 101214018

Product Code: 101214018

Enhance your machine safety with the Schmersal AZ3350 series safety switch, featuring a robust angled actuator design. With an actuating radius of 400 mm, this safety switch is engineered to deliver reliable performance and integration into various safety systems. Trust in Schmersal's commitment to safeguarding operations with their expertly crafted machine safety solutions.

Technical Specifications

Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 342
Net Weight (g) 392
Maximum Temperature (°C) 90
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -30
Brand SCHMERSAL
Series AZ3350
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-06-09
ETIM 7.0 EC002591
ETIM 6.0 EC002591
eCl@ss Number, Version 11.0 27-27-26-03
Maximum Ambient Temperature (°C) 80
Minimum Mechanical Life 10000000 Operations
Terminal Type Screw terminals M20 x 1.5
Utilisation Category AC-15 240 VAC
Utilisation Category DC-13 24 VDC
Sensor Length (mm) 50
Sensor Height (mm) 139
Degree of Protection IP67
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / BG-GS-ET-15
Explosion Protection Category 2G | 2D
