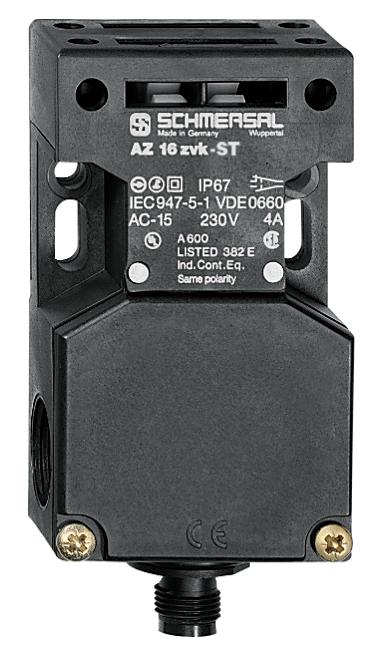

SCHMERSAL SAFETY SWITCH WITH SEPARATE ACTUATOR 101144941

Product Code: 101144941

Technical Specifications

Brand SCHMERSAL
Actuator Type Roller lever H65
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-37-12-12
eCl@ss Number, Version 9.0 27-27-06-07
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
ETIM 6.0 EC001099
ETIM 7.0 EC002544
Gross Weight (g) 50
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 1
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1 x 1.0 , flexible
Maximum Fuse Rating 6 A (slow blow)
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 10000000 Operations
Minimum Positive Break Force (N) 20
Net Weight (g) 2140
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 112
Sensor Length (mm) 46.5
Standards EN IEC 60947-5-1 / EN IEC 60947-5-5 / EN ISO 13850
Storage Temperature (°C) -25 to 70
Switching Element Opener (NC)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 0.14 mm
Working Principle Electromechanical
