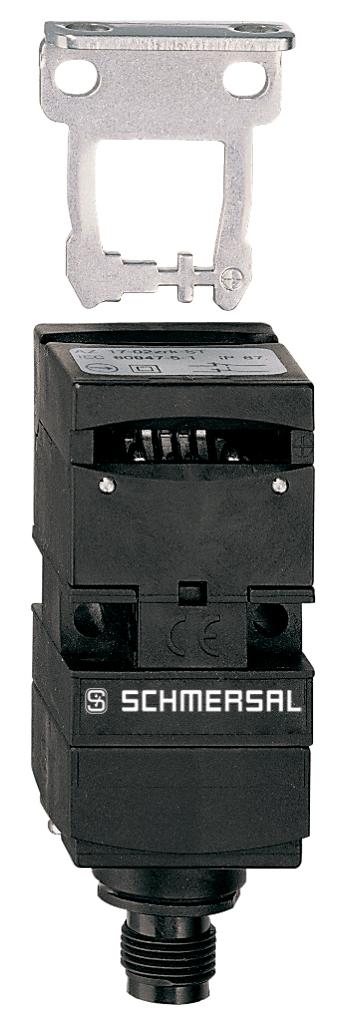

SCHMERSAL AZ17-02ZI-ST-B6R SAFETY SWITCH WITH SEPARATE ACTUATOR 101144091

Product Code: 101144091

Explore the Schmersal AZ17 Series safety switch, designed for machine safety with a focus on reliability and durability. This right-hand model features a robust thermoplastic enclosure and comes equipped with two safety contacts and no auxiliary contacts. It utilizes an M12 4-pole connector plug with A-coding for secure connections. The switching element is an opener (NC) type, ensuring fail-safe operation. With a thermal test current of 10 A, it's rated for use in control circuit applications with AC-15: 230 VAC up to 4 A and DC-13: 24 VDC up to 4 A. The separate actuator enhances flexibility in application, making the AZ17 an essential component for safeguarding equipment and personnel.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Series AZ17
