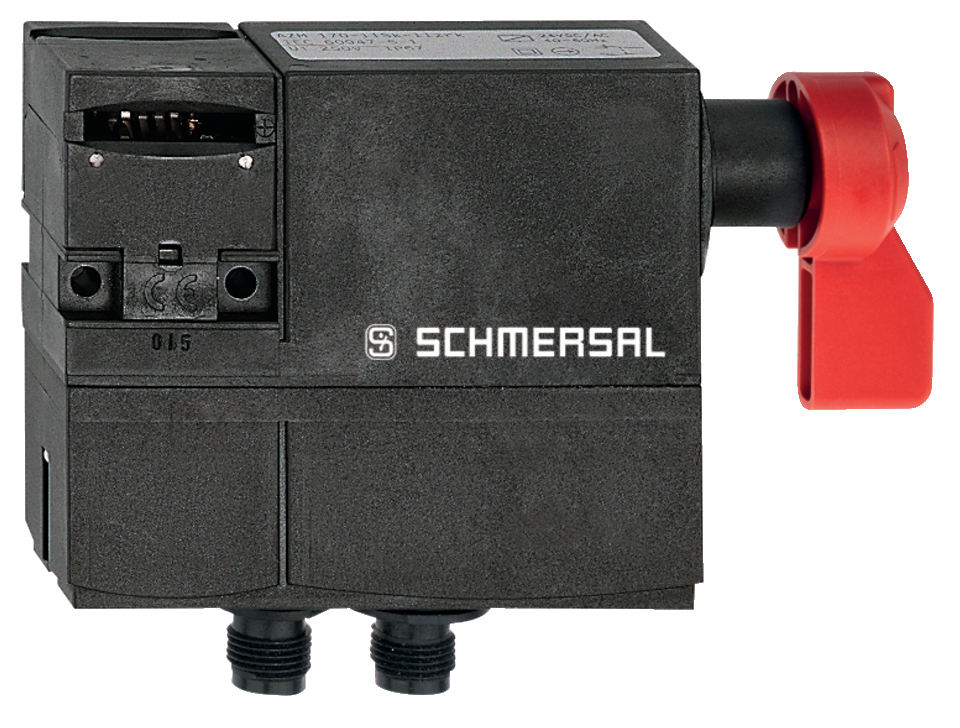

SCHMERSAL AZM 170-02ZRK-ST-2405 24VAC/DC 101150018

Product Code: 101150018

Technical Specifications

Brand SCHMERSAL
Ambient Temperature Range (°C) -25 to 60
Contact Material Silver
Degree of Protection IP67
Enclosure Material Plastic, Glass-Fibre-Reinforced
Gross Weight (g) 290
Maximum Electrical Power Consumption (W) 12
Minimum Mechanical Life 1,000,000
Rated Control Voltage AC/DC (V) 24
Rated Short-circuit Current (A) 1000
Sensor Height (mm) 92.5
Sensor Length (mm) 30
Sensor Width (mm) 110
Standards and Approvals EN ISO 13849-1
Thermal Test Current (A) 4
