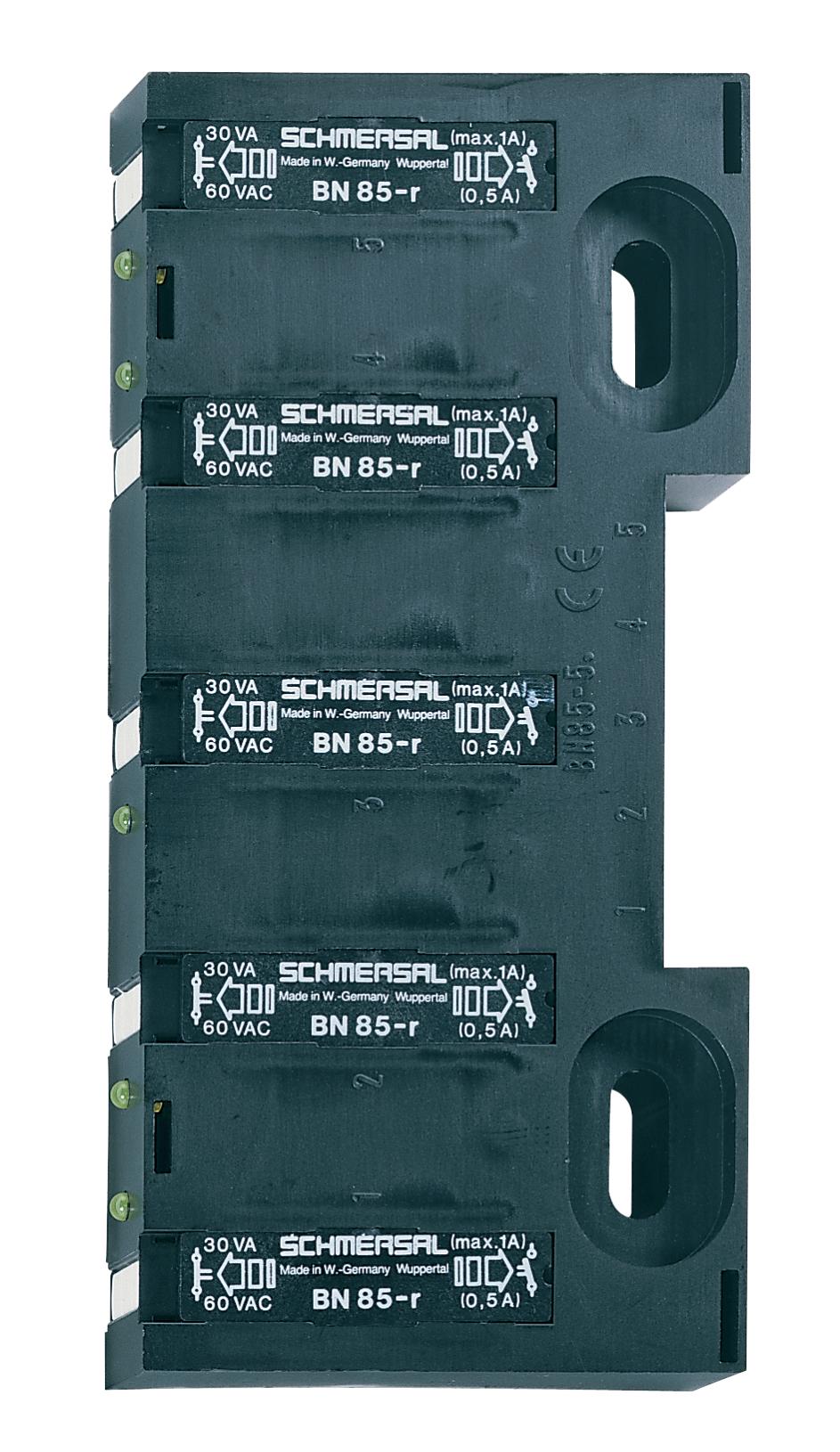

SCHMERSAL BN85-5-2031 MAGNETIC REED SWITCH 101118378

Product Code: 101118378

Explore the Schmersal BN 85 Series Magnetic Reed Switch, designed for precision and durability. This switch features a robust thermoplastic enclosure with a rectangular shape, ensuring long-lasting performance in various applications. It comes equipped with a 10-pole terminal connector for easy integration into your system. The switch offers front actuation with a bistable contact element, allowing for reliable operation within an actuation distance range of 2 mm to 40 mm. Engineered to handle switching voltages from 12 to 60 VDC and currents up to 1 A, it boasts a maximum switching capacity of 30 VA. This model includes five reed contacts for enhanced functionality. Please note that actuators are not included and must be purchased separately. Installation is made simple with an enclosure featuring mounting slots, facilitating secure placement in your setup. Operating within a temperature range of -10°C to 75°C and rated at IP30, the Schmersal BN 85 Series is built for resilience in diverse environments. Ideal for engineers seeking reliable position sensors, this magnetic reed switch balances performance with longevity.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP65
Maximum Nominal Output Voltage DC (V) 60
Maximum Temperature (°C) 75
Minimum Nominal Output Voltage DC (V) 12
Minimum Temperature (°C) -10
Mounting Type Threaded
Nominal Output Current (A) 1
Nominal Power (W) 30
Series BN 85
