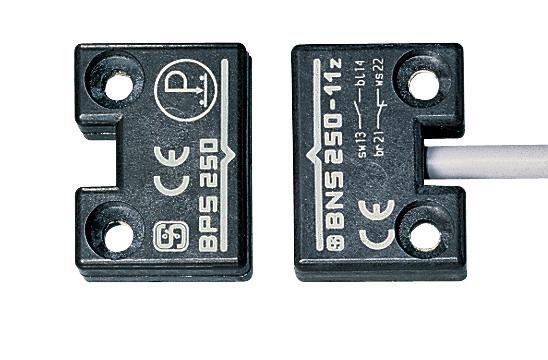

SCHMERSAL BNS 250-11Z 3.0MMAGNETIC SAFETY SENSOR 101126017

Product Code: 101126017

Technical Specifications

Housing Material Glass-fibre, Reinforced Thermoplastic
Installation Conditions Not Flush
Direction of Motion Head-on to the Active Surface
Maximum Storage Temperature (°C) 70
Minimum Ambient Temperature (°C) -25
Minimum Storage Temperature (°C) -25
Brand SCHMERSAL
Recommended Actuator BPS 250
Maximum Ambient Temperature (°C) 70
Wire Cross Section (mm²) 0.25mm² (Diameter)
Actuating Element Magnet
Maximum Switching Capacity (W) 1
Maximum Switching Current (A) 0.1
Maximum Switching Frequency (Hz) 5
No. of Cables 4
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 150Hz, Amplitude 0.35mm
Termination Cable
Cable Length (m) 3
Sensor Length (mm) 13
Sensor Width (mm) 33
Sensor Height (mm) 25
Degree of Protection IP67
Standards and Approvals EN IEC 60947-5-3, EN ISO 13849-1
