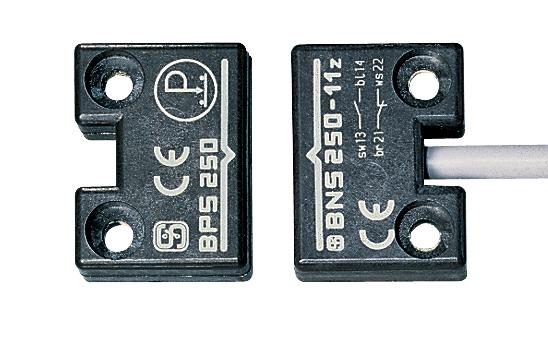

SCHMERSAL BNS 250-11ZG 10.0MMAGNETIC SAFETY SENSOR 101131047

Product Code: 101131047

Technical Specifications

Brand SCHMERSAL
Actuating Element Magnet
Cable Length (m) 10
Degree of Protection IP67
Direction of Motion Head-on to the Active Surface
Housing Material Glass-fibre, Reinforced Thermoplastic
Installation Conditions Not Flush
Maximum Ambient Temperature (°C) 70
Maximum Storage Temperature (°C) 70
Maximum Switching Capacity (W) 0.24
Maximum Switching Current (A) 0.01
Maximum Switching Frequency (Hz) 5
Minimum Ambient Temperature (°C) -25
Minimum Storage Temperature (°C) -25
No. of Cables 4
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Recommended Actuator BPS 250
Recommended Safety Switchgear SRB-E-301ST
Resistance to Shock (g/ms) 30g / 11ms
Resistance to Vibrations 10 ... 150Hz, Amplitude 0.35mm
Sensor Height (mm) 25
Sensor Length (mm) 13
Sensor Width (mm) 33
Standards and Approvals EN IEC 60947-5-3, EN ISO 13849-1
Termination Cable
Wire Cross Section (mm²) 0.25mm² (Diameter)
