Product Code: 101188403

The Schmersal EX-AZ16 safety switch is engineered for hazardous area applications, featuring a robust thermoplastic enclosure and a separate actuator for enhanced safety. This switch includes one auxiliary contact and two safety contacts, ensuring reliable operation. It is designed to handle a thermal test current of 2.5 A and meets utilisation categories AC-15 with a voltage rating of 230 VAC and DC-13 at 24 VDC, both at 2.5 A. The switching element comprises both NO (normally open) and NC (normally closed) contacts, making it versatile for various circuit designs. Ideal for engineers seeking dependable safety solutions in challenging environments, the EX-AZ16 series offers precision and durability where it matters most.

Enclosure Material	Plastic, glass-fibre-reinforced
Gross Weight (g)	190
Net Weight (g)	190
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-20
Brand	SCHMERSAL
Series	EX-AZ16
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-26-03
ETIM 7.0	EC002593
ETIM 6.0	EC002593
eCl@ss Number, Version 11.0	27-27-26-03
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Contact Material	Silver
Maximum Actuating Speed (m/s)	2.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Mechanical Life	30000000 Operations
No. of Safety Contacts	4
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	300
Switching Element	NO contact / NC contact
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Thermal Test Current (A)	2.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	31
Sensor Height (mm)	93.5
Degree of Protection	IP67
Standards	EN IEC 60947-5-1

Position Switches & Sensors

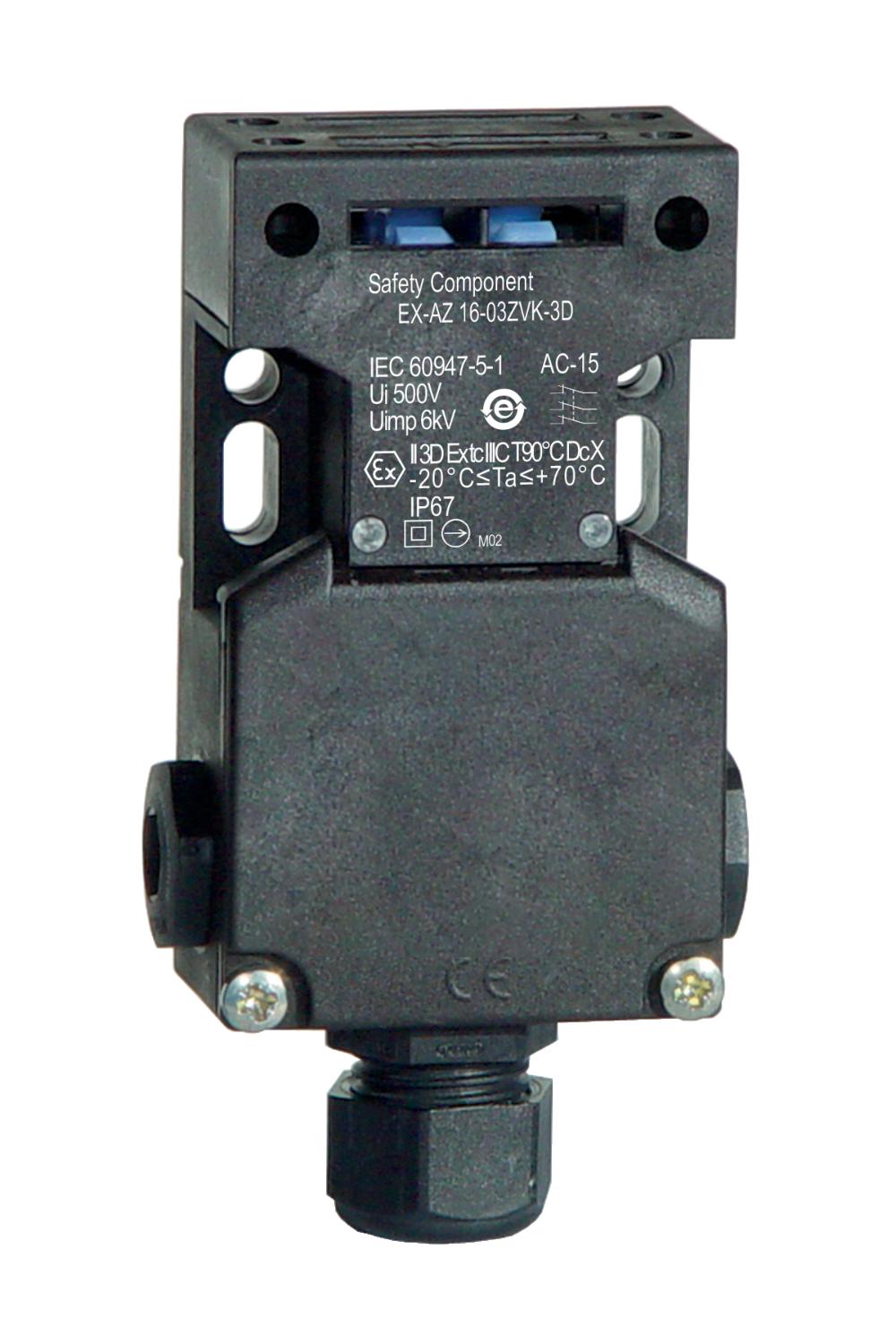

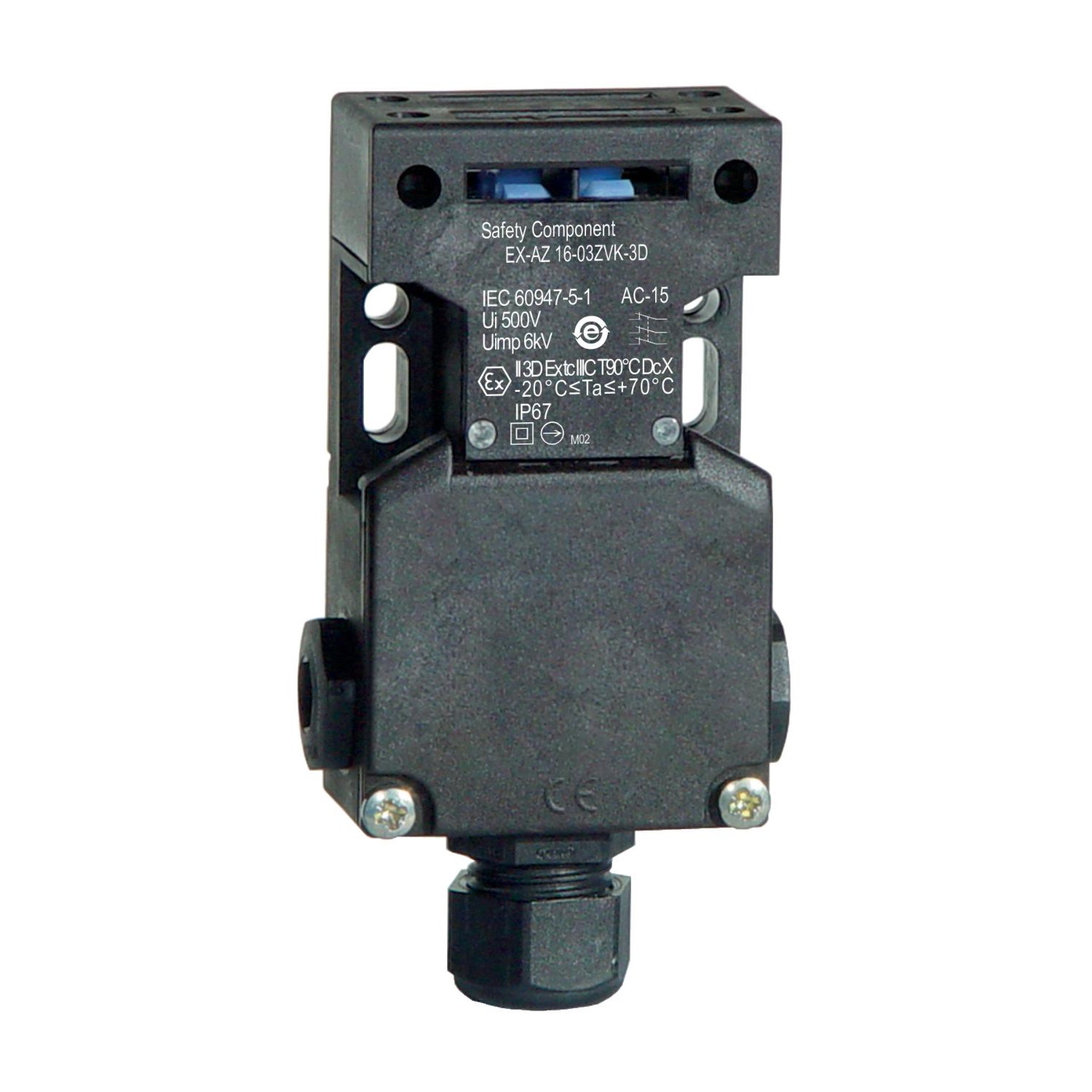

SCHMERSAL EX-AZ16-12ZVK-3D SAFETY SWITCH WITH SEPARATE ACTUATOR 101188403
