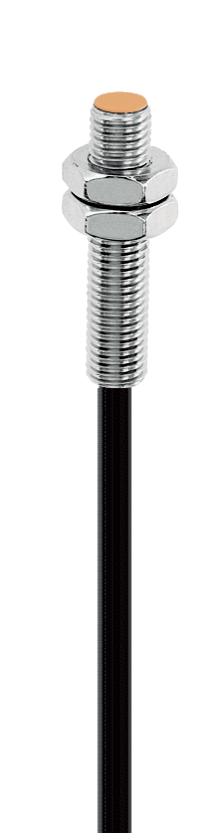

SCHMERSAL IFL2-8M-10P INDUCTIVE PROXIMITY SWITCH 101107846

Product Code: 101107846

Explore the Schmersal IFL Series Inductive Proximity Switch, a compact and robust sensing solution designed for precise position detection in industrial environments. This DC 3-wire sensor features a miniature cylindrical body with an M8 ISO thread, ensuring easy integration into machinery. With a reliable 2 mm sensing distance and NO contact switching element, it operates within a voltage range of 10-30VDC and supports up to 200 mA load current. The switch boasts a high switching frequency of 3000 Hz and offers a digital output of 1.2 V at 0.2 A, p-type. Engineered with a durable metal enclosure, this proximity switch is equipped with inductive interference protection, polarity reversal protection, and surge protection to ensure stable operation under challenging conditions. It also includes status indication for real-time monitoring. Rated IP67 according to IEC/EN 60532 standards, it can withstand harsh environmental conditions ranging from -25°C to 70°C. Trust in the Schmersal brand for reliable position sensors that deliver precision and durability where it matters most.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Design of Control Element Short-circuit proof, p-type
eCl@ss Number, Version 11.0 27-37-12-10
eCl@ss Number, Version 9.0 27-37-12-11
ETIM 6.0 EC000223
ETIM 7.0 EC002714
Gross Weight (g) 75
Housing Construction Form Norm construction design
Installation Conditions Quasi-flush
Latching Force (N) 30
Maximum Actuating Speed (m/s) 2
Maximum Bounce Duration (ms) 2
Maximum Fuse Rating 6 A gG D-fuse
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Switching Capacity (W) 0.24
Maximum Temperature (°C) 70
Minimum Actuating Speed (mm/min) 60
Minimum Ambient Temperature (°C) 0
Minimum Positive Break Force (N) 20
Minimum Temperature (°C) -25
Net Weight (g) 59
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Nominal Output Current (A) 0.2
Positive Break Travel (mm) 8
Protection Class of Operating Resource 3
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Rated Operating Current (mA) 50
Rated Operational Current (A) 0.2
Rated Short-circuit Current (A) 400
Recommended Actuator AZM 40-B1
Recommended Safety Switchgear SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 100
Sensor Length (mm) 33
Switching Element Opener (NC)
Switching Principle Slow action
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Wire Cross-Section 13 AWG
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Pull strap
Cable Length (m) 2
Contact Material Silver
Degree of Protection IP67
Depth (mm) 220
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Plastic, glass-fibre-reinforced
Height (mm) 100
Maximum Ambient Temperature (°C) 90
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Minimum Mechanical Life 10000000 Operations
Mounting Type Threaded
Overvoltage Category 3
Pollution Degree 2
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 300
Series IFL
Standards EN IEC 60947-5-1
Storage Temperature (°C) -25 to 70
Terminal Type Flat plug-in connector - 6.3 mm x 0.8 mm / 2 x 2.8 mm x 0.8 mm
Width (mm) 40
