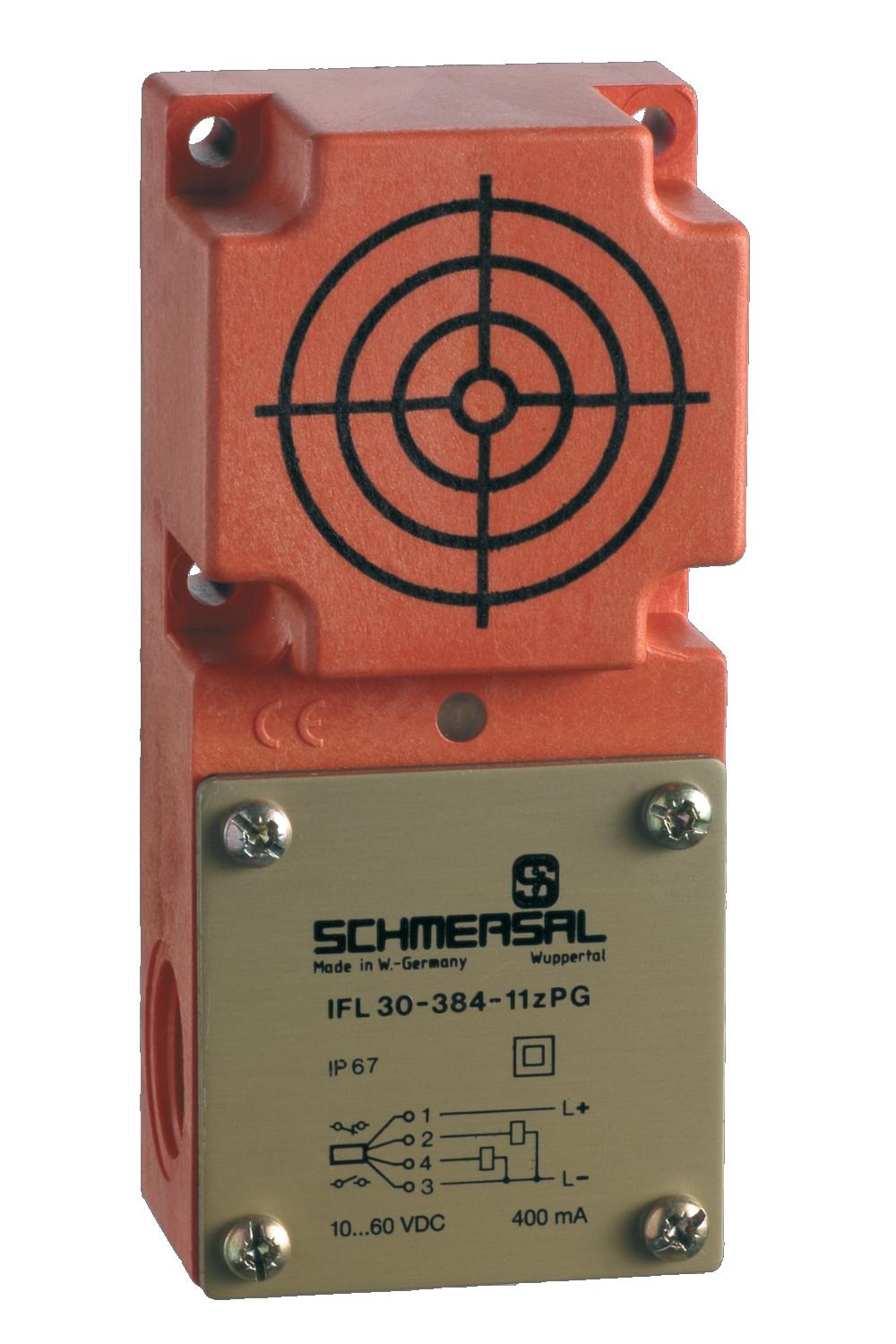

SCHMERSAL IFL30-384-11P-M20 INDUCTIVE PROXIMITY SWITCH 101173958
SCHMERSAL IFL30-384-11P-M20 INDUCTIVE PROXIMITY SWITCH 101173958
Product Code: 101173958
Discover the Schmersal IFL Series Inductive Proximity Switch, a robust DC 4-wire block sensor designed for precise position sensing in demanding industrial environments. With a notable 30 mm switching distance and versatile NO/NC contacts, this plastic-encased sensor ensures reliable operation between -25°C to 70°C. It operates on a voltage range of 10 to 60VDC with a current capacity of 400 mA and boasts a digital output of 1.5 V at 0.4 A, p-type. Engineered for durability, it features inductive interference protection, polarity reversal defense, and an IP67 rating confirming its resistance to dust and water ingress. The device's screw connection facilitates secure installation while its switching frequency is set at a steady 25 Hz, optimizing performance for various engineering applications within the Position Sensors category.
Technical Specifications
Brand
SCHMERSAL
Actuator Type
Roller plunger R201
Cable Note
All indications including the conductor ferrules.
Contact Material
Silver
Degree of Protection
IP67
EAN
4030660000000
eCl@ss Number, Version 11.0
27-24-25-01
eCl@ss Number, Version 9.0
27-37-12-05
Enclosure Material
Aluminium
ETIM 6.0
EC002925
ETIM 7.0
EC000225
Gross Weight (g)
56.61
Housing Construction Form
Block
Maximum Actuating Speed (m/s)
2
Maximum Ambient Temperature (°C)
80
Maximum Cable Cross Section (mm²)
2.5
Maximum Fuse Rating
4 A gG D-fuse to DIN EN 60269-1
Maximum Nominal Output Voltage DC (V)
1.5
Maximum Temperature (°C)
70
Minimum Ambient Temperature (°C)
-15
Minimum Cable Cross Section (mm²)
0.75
Minimum Mechanical Life
50000 Operations
Minimum Temperature (°C)
-25
Mounting Type
Threaded
Net Weight (g)
2697
No. of Safety Contacts
2
Nominal Output Current (A)
0.4
Rated Impulse Withstand Voltage (kV)
2.5
Rated Insulation Voltage (V)
500
Rated Maximum Operational Voltage DC (V)
60
Rated Minimum Operational Voltage DC (V)
10
Rated Short-circuit Current (A)
1000
Sensor Height (mm)
36
Sensor Length (mm)
31.5
Series
IFL
Standards
EN IEC 60947-5-1
Switching Element
NO contact, NC contact
Switching Principle
Slow action
Terminal Type
Cable
Utilisation Category
DC-13 | AC-15
Working Principle
Inductive
Documents
Datasheet
Product catalogue (Flipbook)
