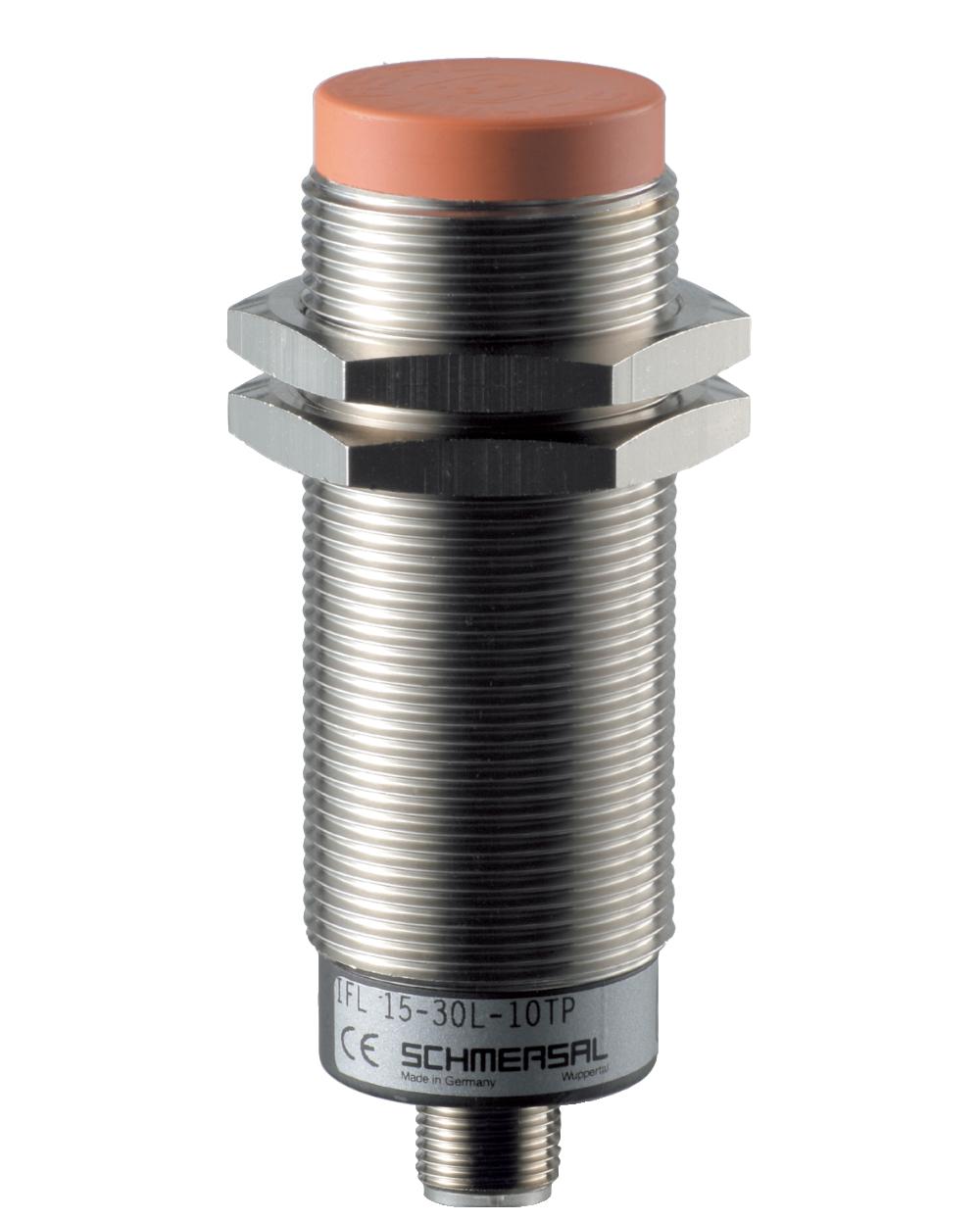

SCHMERSAL IFL 15-30-10STPINDUCTIVE PROXIMITY SWITCH 101108111

Product Code: 101108111

Technical Specifications

Brand SCHMERSAL
Cable Length (m) 2
Current for Voltage Drop (A) 0.2
Degree of Protection IP67
Enclosure Coating Material Nickel-plated
Housing Material Brass
Installation Conditions Not Flush
Maximum Ambient Temperature (°C) 70
Maximum Operational Voltage (V) 30
Maximum Rated Frequency (Hz) 65
Maximum Voltage Drop (V) 1.2
Minimum Ambient Temperature (°C) -25
Minimum Operational Voltage (V) 10
Minimum Rated Frequency (Hz) 45
No. of Cables 3
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Current (mA) 200
Sensor Length (mm) 100
Standards and Approvals EN IEC 60947-5-2
Switching Element NO Contact
Switching Frequency (Hz) 10
Termination Cable
Wire Cross Section (mm²) 0.34mm² (Diameter)
