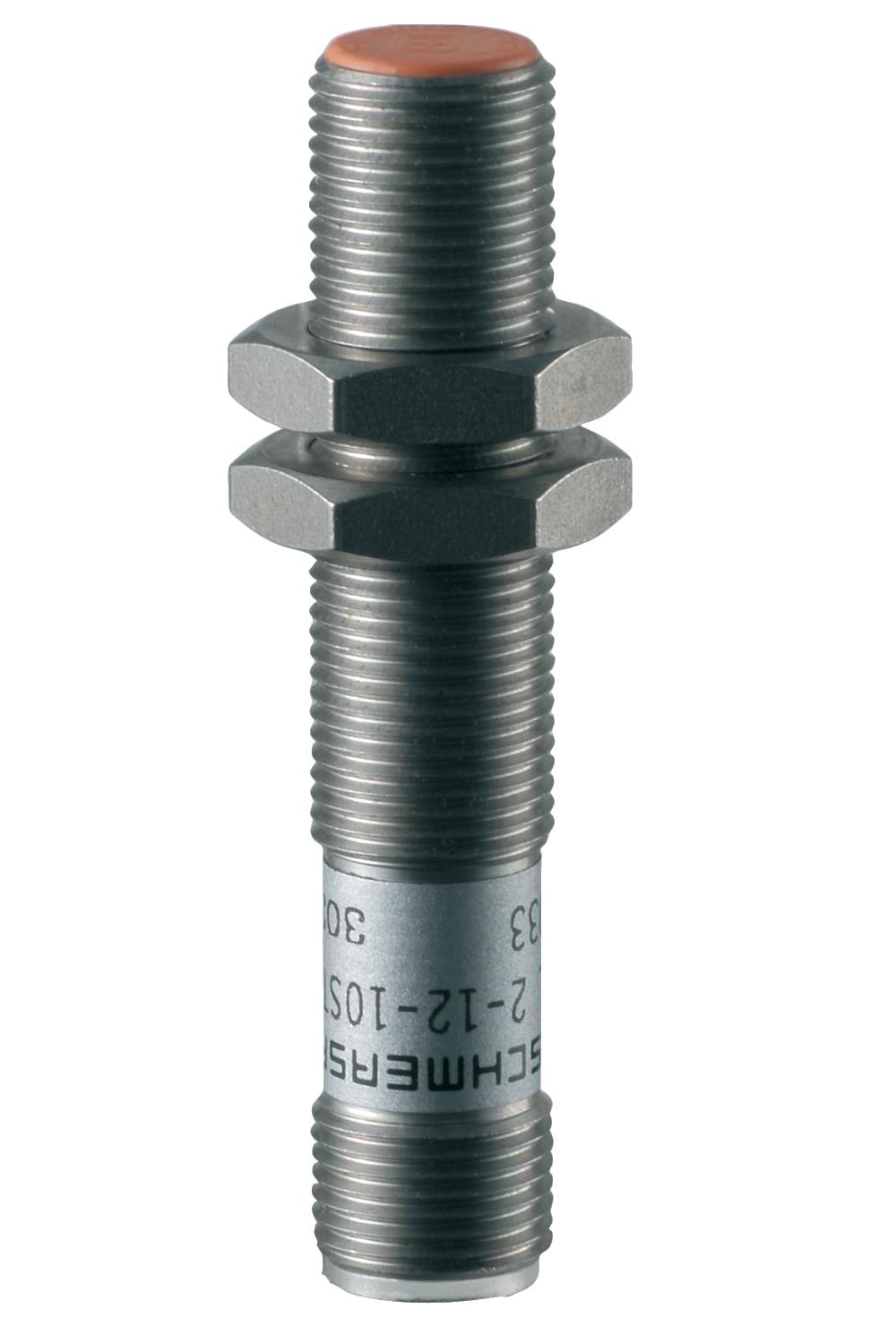

SCHMERSAL IFL2-12-01STN INDUCTIVE PROXIMITY SWITCH 101101329

Product Code: 101101329

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for industrial applications. This DC 3-wire cylindrical sensor features a reliable 2 mm switching distance and an M12 connector with ISO thread, ensuring easy integration into various systems. Constructed with a durable brass enclosure, it operates within a voltage range of 10 to 30VDC and can handle up to 200 mA of current. The switch is characterized by its opener (NC) switching element and boasts a high switching frequency of 800 Hz. Equipped with digital output specifications of 1.2 V and 0.2 A, n-type, this sensor ensures robust performance even in environments with inductive interference. It offers comprehensive protection including polarity reversal and surge protection, enhancing its longevity and reliability. Suitable for operating in temperatures ranging from -25°C to 70°C, the Schmersal proximity switch also meets IP67 standards according to EN 60529 for dust and water resistance. Engineered for precision and durability, this proximity switch is an ideal choice for engineers looking for reliable position sensing solutions in demanding industrial settings.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
