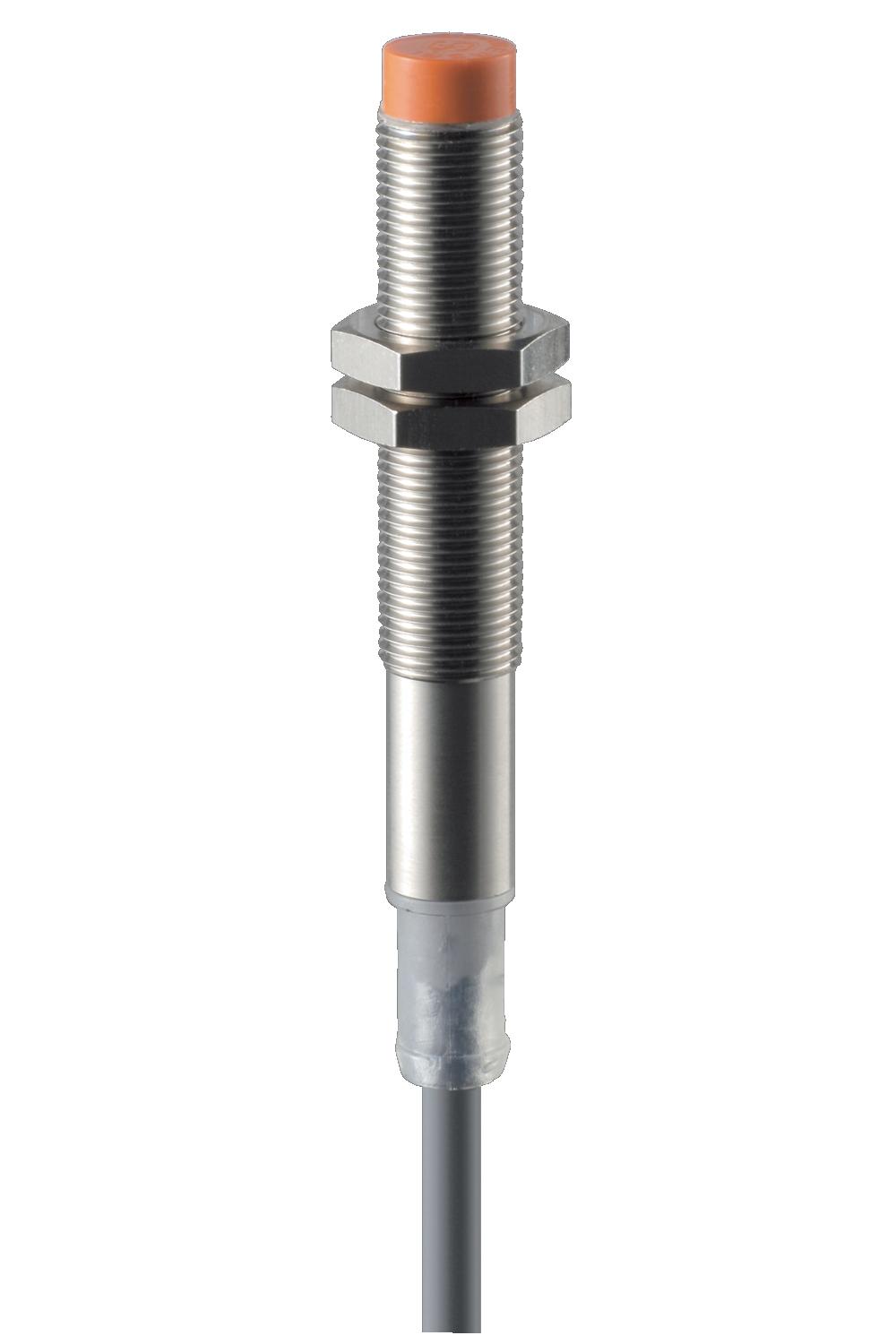

SCHMERSAL IFL 4-12L-01TP INDUCTIVE PROXIMITY SWITCH 101117696
Zoom
SCHMERSAL IFL 4-12L-01TP INDUCTIVE PROXIMITY SWITCH 101117696
Product Code: 101117696
Discover the Schmersal IFL Series Inductive Proximity Switch, a robust and reliable sensor designed for precise positioning tasks. This DC 3-wire cylindrical sensor features a 2 mm switching distance and is equipped with an M12 plug connector cable of 2 meters in length, ensuring easy integration into your system. The switch operates on a voltage range of 10 to 30VDC with a current rating of 200 mA and boasts a high switching frequency of 800 Hz. Constructed with a durable brass enclosure, this proximity switch offers normally closed (NC) contacts and ensures consistent performance with its digital output rated at 1.2 V and 0.2 A, p-type. Engineered to withstand challenging industrial environments, it includes inductive interference protection, polarity reversal protection, and surge protection. Operating within a temperature range of -25°C to 70°C, the Schmersal inductive proximity switch maintains functionality even under extreme conditions. It also meets IP67 standards according to EN 60529 for dust and water resistance, making it suitable for various applications within the Position Sensors category. Trust in the precision engineering of Schmersal for your sensing needs.
Technical Specifications
Maximum Nominal Output Voltage DC (V)
1.2
Maximum Temperature (°C)
70
Minimum Temperature (°C)
-25
Nominal Output Current (A)
0.2
Rated Maximum Operational Voltage DC (V)
30
Rated Minimum Operational Voltage DC (V)
10
Brand
SCHMERSAL
Degree of Protection
IP67
Mounting Type
Threaded
Series
IFL
