Product Code: 101114553

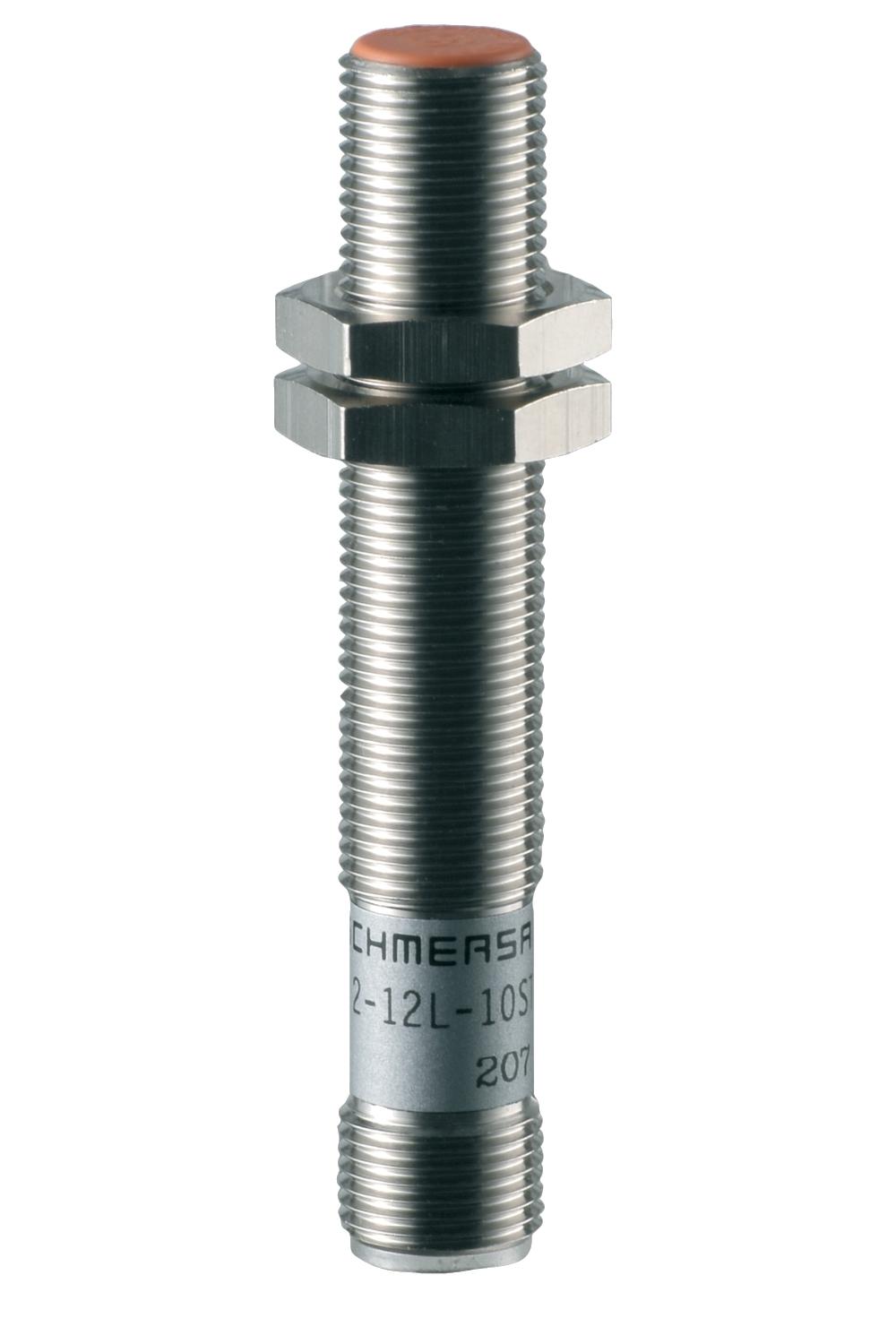

Discover the Schmersal IFL Series Inductive Proximity Switch, a robust and reliable sensor designed for precise positioning tasks. This DC 3-wire cylindrical sensor features a 2 mm sensing distance and is equipped with an M12 connector, conforming to ISO thread standards. It operates on a voltage range of 10-30VDC with a current capacity of 200 mA and boasts a high switching frequency of 800 Hz. The switch's digital output is rated at 1.2 V and 0.2 A, n-type, ensuring compatibility with various digital circuits. Crafted from durable brass, the enclosure guarantees longevity even in demanding industrial environments. The normally open contact (NO) switching element enhances its versatility in automation applications. Safety is paramount with this proximity switch as it includes inductive interference protection, polarity reversal protection, and surge protection features. It operates efficiently within a temperature range of -25°C to 70°C and meets the IP67 rating according to EN 60529 for water and dust resistance. Engineered for precision and durability, the Schmersal IFL Series is an ideal choice for engineers seeking high-performance position sensors in their automation systems.

Technical Specifications

Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Degree of Protection IP67
Mounting Type Threaded
Series IFL
