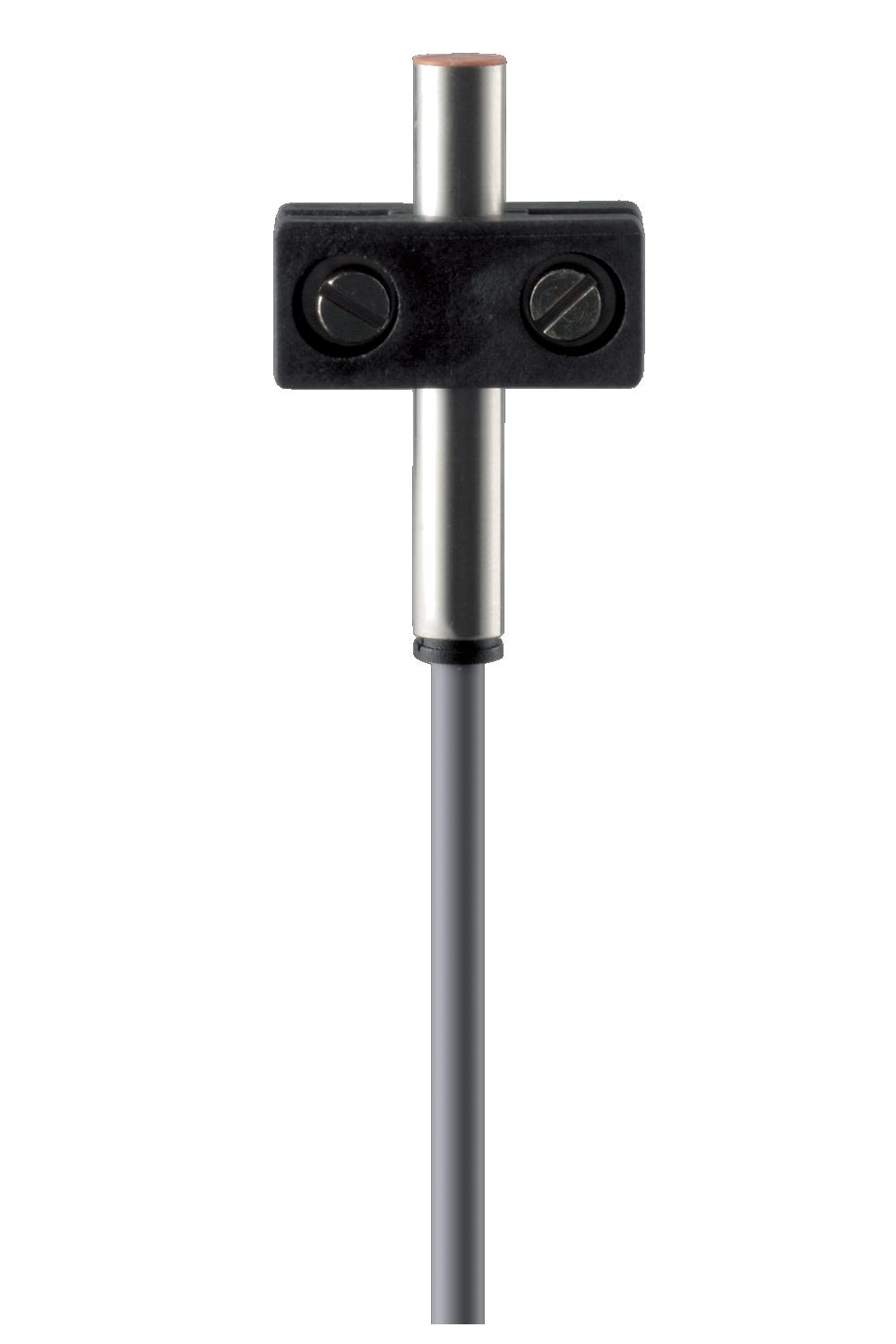

SCHMERSAL IFL2-6.5M-10P INDUCTIVE PROXIMITY SWITCH 101112854

Product Code: 101112854

The Schmersal IFL Series inductive proximity switch is a high-precision position sensor designed for industrial applications. This DC 3-wire, cylindrical sensor offers a reliable detection range of 2 mm and comes equipped with a 2-meter cable for easy installation. It features a normally open contact (NO) switching element housed within a robust brass enclosure, ensuring durability in challenging environments. Operating on a voltage range of 10 to 30VDC with a current capacity of 200 mA, this sensor boasts an impressive switching frequency of 3,000 Hz. Its digital output is rated at 1.2 V and 0.2 A, p-type, which ensures quick and efficient signal processing. The device is engineered with inductive interference protection, polarity reversal protection, and surge protection to maintain performance stability and extend its lifespan. Suitable for use in temperatures ranging from -25°C to 70°C, the Schmersal IFL proximity switch also meets IP67 standards according to EN 60529, offering complete protection against dust ingress and the effects of immersion in water. This makes it an ideal choice for engineers looking for a reliable sensing solution that can withstand harsh conditions while maintaining accuracy and operational integrity.

Technical Specifications

Brand SCHMERSAL
Degree of Protection IP67
Maximum Nominal Output Voltage DC (V) 1.2
Maximum Temperature (°C) 70
Minimum Temperature (°C) -25
Mounting Type Threaded
Nominal Output Current (A) 0.2
Rated Maximum Operational Voltage DC (V) 30
Rated Minimum Operational Voltage DC (V) 10
Series IFL
