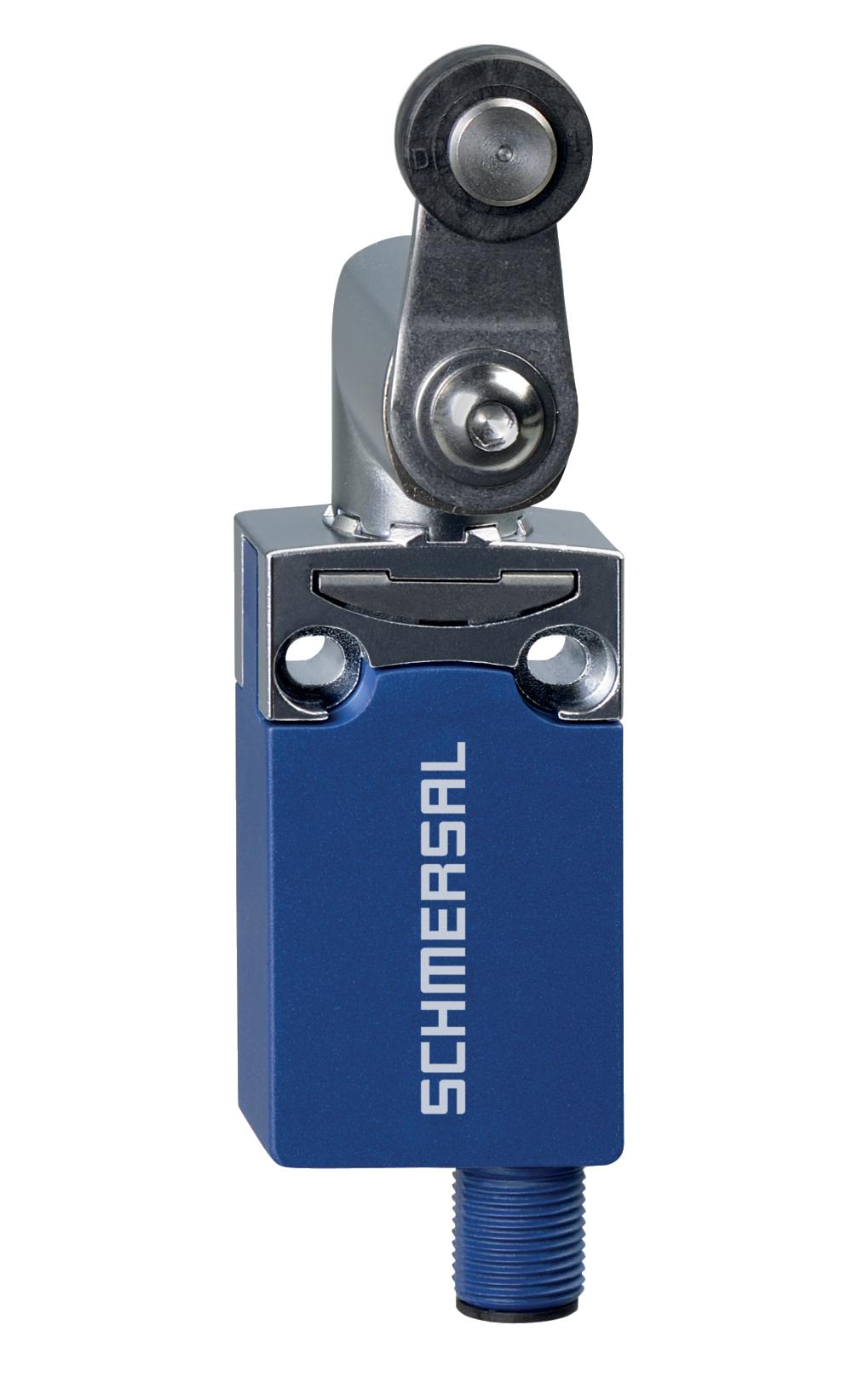

SCHMERSAL PS116-Z11-ST-H200 POSITION SWITCH 103006659

Product Code: 103006659

  • Position switch with thermoplastic enclosure Actuating element: Offset roller lever K210 Switching elements include NO (Normally Open) contact and NC (Normally Closed) contact with snap action Features 1 auxiliary contact and 1 safety contact Thermal test current of 2.5 A Utilisation categories: AC-15 at 240 VAC, 1.5 A; DC-13 at 24 VDC, 1.5 A Operating temperature range from -30 °C to +80 °C Equipped with one Normally Open and one Normally Closed contact
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Enclosure Material Glass-fibre reinforced thermoplastic, ventilated
Maximum Ambient Temperature (°C) 80
Maximum Temperature (°C) 80
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -30
Gross Weight (g) 1930
Net Weight (g) 2130
Brand SCHMERSAL
Product Type Limit Switch
Series PS116
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-03
ETIM 7.0 EC002593
ETIM 6.0 EC000030
eCl@ss Number, Version 11.0 27-27-26-03
Terminal Type IDC method of termination
Utilisation Category AC-15 400 VAC
Utilisation Category DC-13 24 VDC
Sensor Length (mm) 16.6
Degree of Protection IP67
Standards EN IEC 60947-5-1 / DIN VDE 0660-200 / BG-GS-ET-15

Description

Explore the Schmersal PS116 Series Position Switch, designed for machine safety with a robust thermoplastic enclosure. This switch features a roller lever actuating element H200 and offers reliable snap action switching. It includes both NO and NC contacts for versatile integration into your safety systems. The unit is equipped with one auxiliary contact and one safety contact, ensuring secure operations. With a thermal test current of 2.5 A, it can handle utilisation categories AC-15 at 240 VAC and 1.5 A, as well as DC-13 at 24 VDC and 1.5 A, making it suitable for various applications. Trust in the durability and precision engineering of Schmersal for your machine safety needs.
