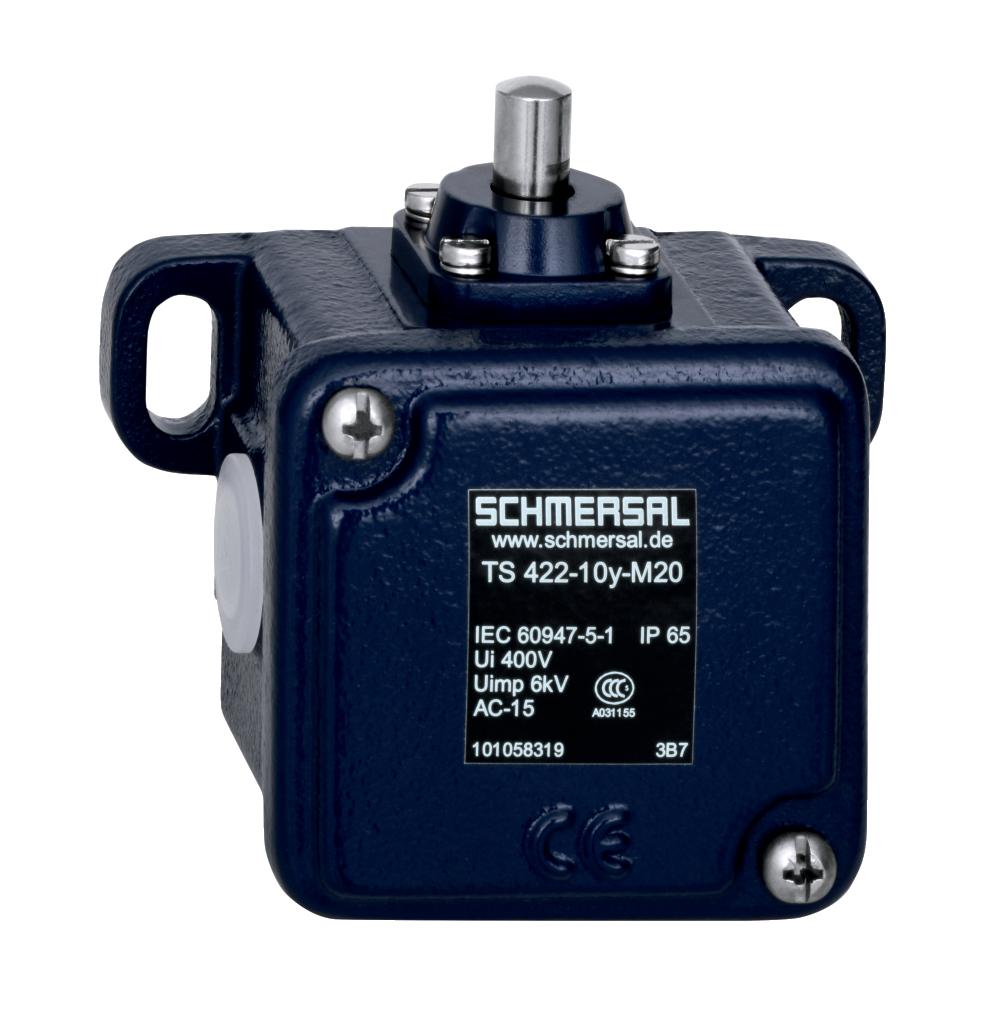

Specifications

Housing Material	Grey Cast Iron, Galvanised
Maximum Ambient Temperature (°C)	90
Minimum Ambient Temperature (°C)	-30
Enclosure Coating Material	Painted
Contact Opening (mm)	2 x 6
Brand	SCHMERSAL
Actuating Angle	20°
Actuating Element	Plunger
Contact Material	Silver
Maximum Actuating Speed (m/s)	1
Maximum Cable Cross Section (mm²)	2.5
Maximum Fuse Rating	16 A gG D-fuse
Minimum Actuating Speed (mm/min)	1
Minimum Cable Cross Section (mm²)	1.5
No. of Normally-open Contacts	1
Rated Operational Current AC-15 (A)	4
Switching Element	NO Contact
Termination	Screw Terminals M20 x 1.5
Thermal Test Current (A)	16
Utilisation Category	AC-15
Sensor Length (mm)	63
Sensor Width (mm)	106
Sensor Height (mm)	97
Plunger Diameter (mm)	10
Degree of Protection	IP65
Standards and Approvals	EN IEC 60947-5-1
