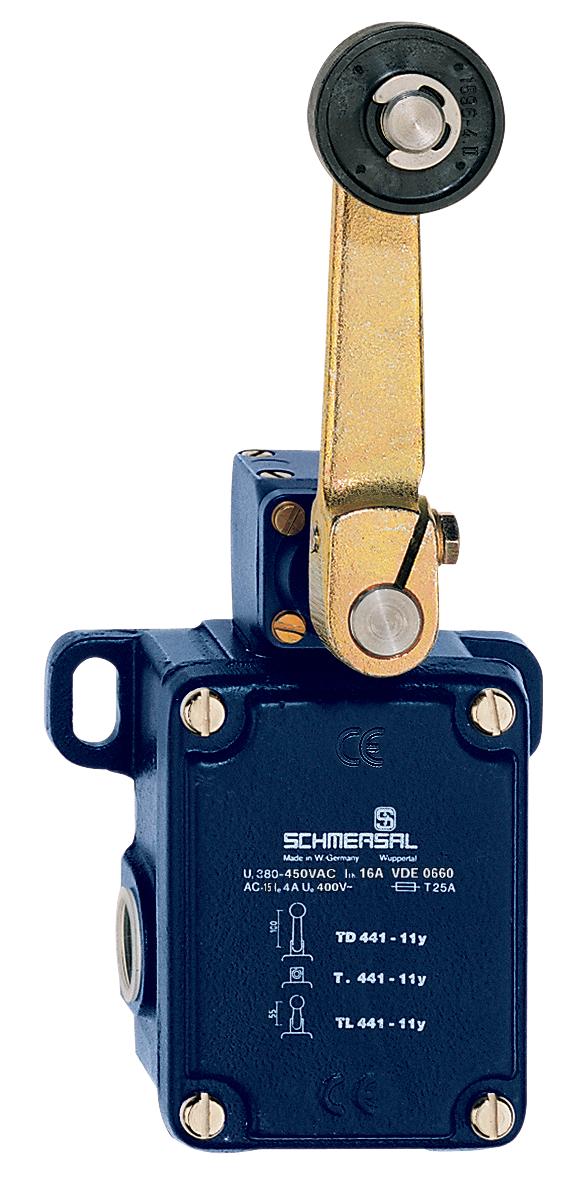

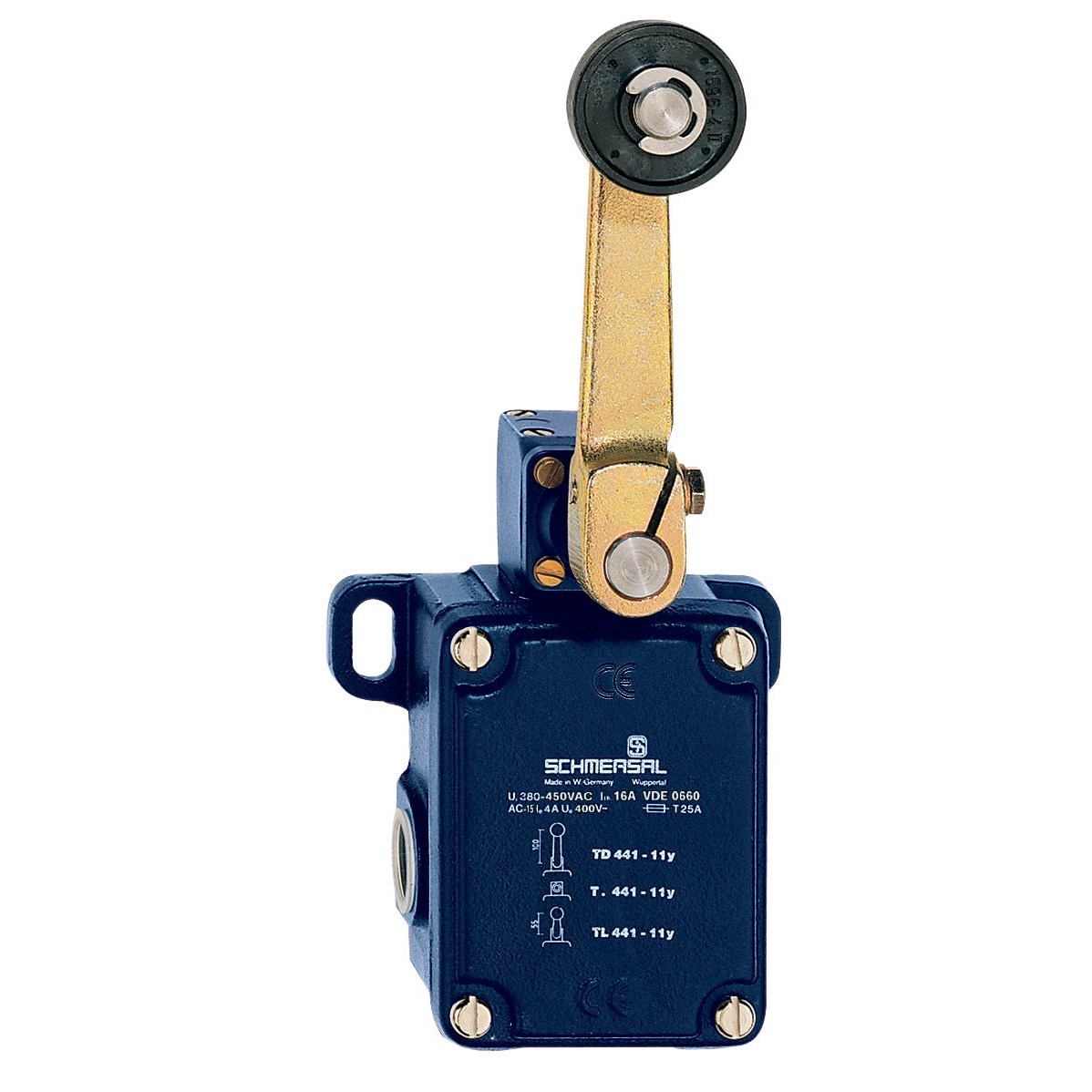

SCHMERSAL TD 441-11Y-M20 MEDIUM-DUTY POSITION SWITCH 101170463

Product Code: 101170463

  • Medium-duty metal enclosure position switch Actuating element: Roller lever Switching element: 1 x NC (Normally Closed) contact Terminal Connector: Screw connection Utilisation category AC-15: 4 A at 400 VAC Cable entries: 2 x M20 x 1.5 Operating temperature range: -30 °C to +90 °C IP Rating: IP65 according to IEC/EN 60529
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Actuator Type Roller plunger S300
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 70
Maximum Temperature (°C) 90
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -30
Gross Weight (g) 80
Net Weight (g) 55
Brand SCHMERSAL
Product Type Limit Switch
Series 441 roller lever D
Working Principle Inductive
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 7.0 EC000030
ETIM 6.0 EC000030
eCl@ss Number, Version 11.0 27-27-26-01
Cable Note All indications including the conductor ferrules.
Contact Material Silver
Maximum Actuating Speed (m/s) 0.3
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A (slow blow)
Minimum Cable Cross Section (mm²) 1 x 0.5
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Switching Element NO contact, NC contact
Switching Principle slow action, positive break NC contact
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Sensor Length (mm) 30
Sensor Height (mm) 173.5
Degree of Protection IP65
Standards EN IEC 60947-5-3 / BG-GS-ET-14

Description

Discover the Schmersal 441 roller lever D position switch, a robust medium-duty sensor designed for precise monitoring and control in industrial settings. This metal-encased switch features a durable roller lever actuator and offers reliable switching with one normally open (NO) and one normally closed (NC) contact. It's equipped with a creep circuit element and secure screw connection terminals, ensuring stable performance. Rated for AC-15 utilization, it can handle 4 A at 400 VAC. The unit includes two M20 x 1.5 cable entries and operates effectively within a temperature range of -30°C to +90°C. With an IP65 rating according to IEC/EN 60529, this position sensor promises resilience against dust and water ingress, making it suitable for challenging environments.
