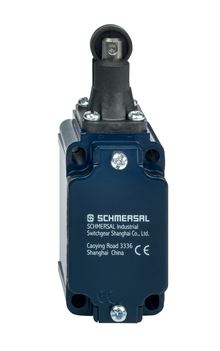

SCHMERSAL TR335-12ZUE-M20 POSITION SWITCH 101168295

Product Code: 101168295

  • Position switch with metal enclosure Actuating element: Roller plunger Switching elements: 1 NO (Normally Open) contact and 1 NC (Normally Closed) contact Thermal test current: 10 A Utilisation category AC-15: 240 VAC, 4 A Utilisation category DC-13: 24 VDC, 1 A IP Rating: IP67 for dust and water resistance Operating temperature range from -30 °C to +80 °C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Brand SCHMERSAL
Series 335
Degree of Protection IP67

Description

The Schmersal Series 335 position switch is a robust machine safety component designed for industrial applications. Encased in a durable metal enclosure, this switch features a roller plunger actuating element and offers both normally open (NO) and normally closed (NC) contacts. It is rated for a thermal test current of 10 A and can handle various utilisation categories: AC-15 with 230 VAC up to 4 A and DC-13 with 24 VDC up to 4 A. This reliable position switch ensures precise operation and safety in demanding environments.
