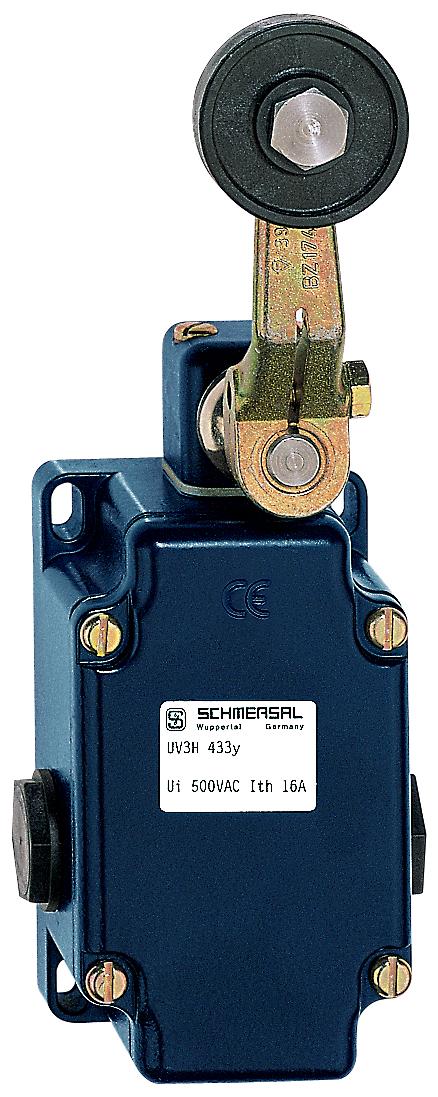

SCHMERSAL UV3H 433YPOSITION SWITCH 101060582

Product Code: 101060582

Technical Specifications

Actuating Angle 30° - From Left of Switch Axis, 30° - From Right of Switch Axis
Actuating Element Roller Lever
Castor Diameter (mm) 36
Castor Material Plastic
Castor Width (mm) 8
Contact Opening (mm) 2 x 1.5
Maximum Actuating Speed (m/s) 3
Maximum Fuse Rating 16 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -20
Sensor Height (mm) 201
Sensor Length (mm) 50
Sensor Width (mm) 62
Switching Element Opener (NC)
Switching Principle Slow Action
Termination Screw Terminals M20 x 1.5
Thermal Test Current (A) 16
Brand SCHMERSAL
Contact Material Silver
Degree of Protection IP65
Enclosure Coating Material Painted
Housing Material Light Alloy Die-casting
Maximum Ambient Temperature (°C) 60
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 10000000 Operations
No. of Normally-closed Contacts 3
Rated Insulation Voltage (V) 500
Standards and Approvals EN IEC 60947-5-1
