Brand	SCHMERSAL
Actuator Type	Roller lever
Cable Note	All indications including the conductor ferrules.
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
eCl@ss Number, Version 11.0	27-27-27-04
eCl@ss Number, Version 9.0	27-37-12-13
Enclosure Material	Plastic, glass-fibre-reinforced
ETIM 6.0	EC002549
ETIM 7.0	EC000030
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	2
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	1.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Ambient Temperature (°C)	-25
Minimum Cable Cross Section (mm²)	0.34
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	40
Net Weight (g)	105.73
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	300
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	107
Sensor Length (mm)	32.5
Standards	EN IEC 61496-1 / EN IEC 61496-2
Storage Temperature (°C)	-25 to 85
Switching Element	2 NC contact
Switching Principle	Slow action
Terminal Type	Connector
Thermal Test Current (A)	2.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.25 mm
Working Principle	RFID

Position Switches & Sensors

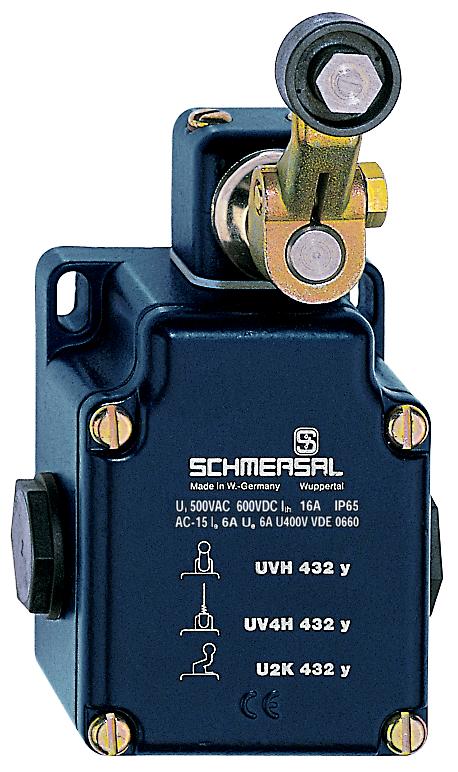

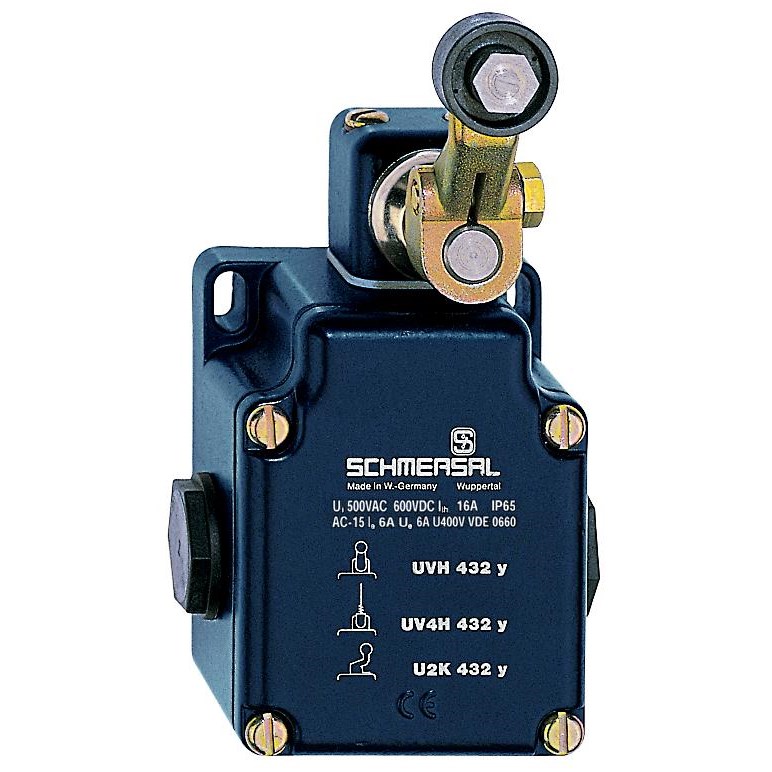

SCHMERSAL POSITION SWITCH 101161093
