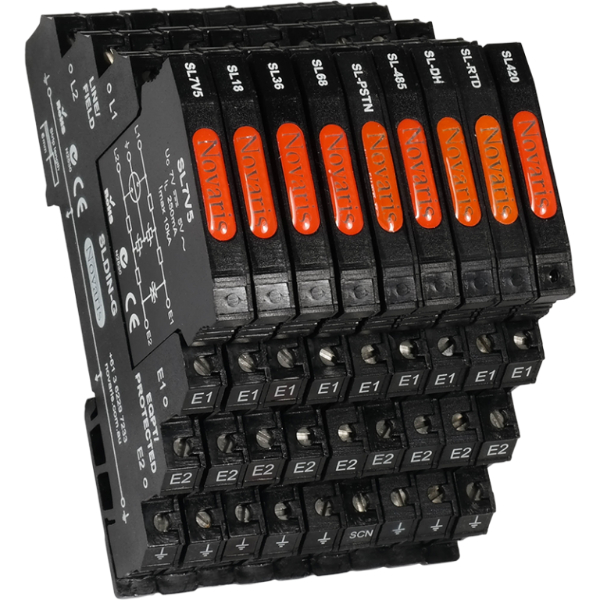

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL485-G

Product Code: SL485-G

Slimline Signal Line protector with direct earthing, RS485 communication protocol,series connection, 1 pair of lines with maximum discharge current (8/20 µs) - 5 kA per line (10 kA common mode), Maximum discharge current (10/350 µs) - 1.25 kA per line (2.5 kA common mode)

Technical Specifications

Housing Material Polycarbonate
Brand NOVARIS
Series SL485
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -55 to +70
Connection Type Series
Maximum Continuous Operating Voltage MCOV DC (V) 8
Maximum Continuous Voltage AC - Uc (V) 6
Maximum Discharge Current (10/350µs) - Imax (kA) 1.25/Line
Maximum Discharge Current (8/20µs) - Imax (kA) 5/Line
Maximum Load Current - I? (A) 0.25
Protocol Type RS485
Tightening Torque (Nm) 0.5
Dimensions (mm) 7.5W X 102H X 68D
Degree of Protection IP20
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
