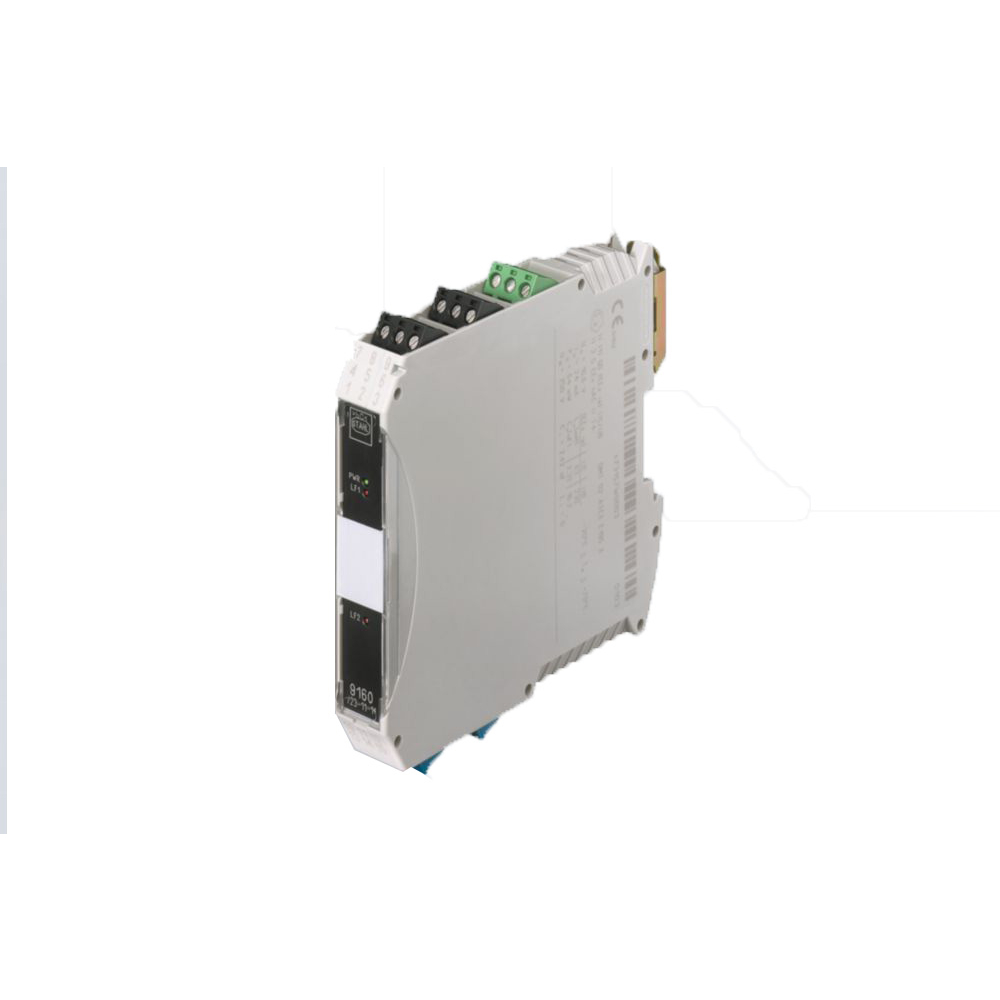

STAHL 9160/19-11-10S TRANSMITTER SUPPLY UNIT EX I FIELD CIRCUIT 214901

Product Code: 214901

The Stahl Series 9160 Transmitter Supply Unit is a versatile and precise solution for hazardous area automation interfaces. This single-channel unit operates in transmitter supply and repeater modes, supporting an auxiliary power range of 18 to 31.2 V AC/DC. It features an isolation amplifier and transmitter power unit with an input function capable of handling 0/4 to 20 mA signals with HART communication. The output functional range is equally robust, offering 0/4 to 20 mA with or without HART. Designed for reliability in extreme conditions, it operates within a temperature range of -20°C to +70°C and boasts an IP30 rating. Installation is simplified with screw terminals and compatibility with Zone 2 environments. The unit's universal design accommodates both two- and three-wire transmitters as well as mA sources including four-wire transmitters. Engineered for high accuracy, the standard model meets SIL 2 requirements, while a special version is available for applications requiring up to SIL3 compliance according to IEC/EN 61508 standards. This makes the Stahl Series 9160 an ideal choice for engineers seeking dependable performance in challenging industrial settings.

Technical Specifications

Brand STAHL
Ambient Temperature Range (°C) -20 to +70
Analogue Signal - Current (mA) Input / Output - 0/4 to 20
Application Application range (zones) - 2
Cable Cross Section (mm²) 0.2 - 2.5
Certifications IECEx, ATEX, Fmus, cFM
Connection Type Screw Terminal
Degree of Protection IP30
Dimensions (mm) 17.6W x 114.5H x 108D
Enclosure Material Polyamide
LED Colour Green - "PWR"
Maximum Current (A) 0.088
Maximum Power (mW) 576
Maximum Temperature (°C) 70
Maximum Voltage (V) 27
Minimum Temperature (°C) -20
Mounting Type DIN Rail
No. of Channels 1
No. of IO 1
Nominal Output Current (A) 0.024
Nominal Power (W) 3.1
Rated Maximum Operational Voltage DC (V) 31.2
Rated Minimum Operational Voltage DC (V) 18
Series 9160
Standards and Approvals ATEX/IECeX
Transmission Rate Interface - 1.2 kbit/s - 1.5 Mbit/s
