Specifications

Mounting Type	Panel
Operational Temperature Range (°C)	-40 to 70
Humidity	5 to 95%
Short Circuit Withstand Level (kA)	50
Brand	NOVARIS

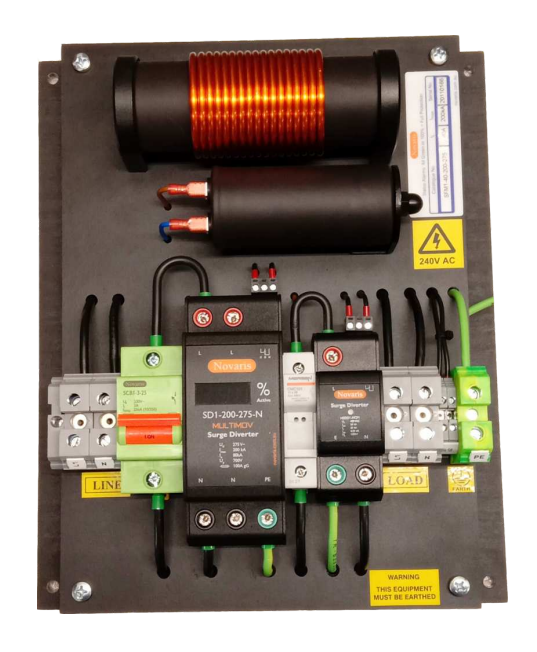

Product Type	Surge Filter
Backup fuse rating (A)	40
Connection Type	Series
Maximum Continuous Voltage AC (V)	275
Maximum Load Current - I? (A)	40
Modes of Protection	L-N, L-PE, N-PE
No. of Phases	1
No. of Ports	2
Nominal Voltage AC (V)	230
Dimensions (mm)	284W x 344H x 110D
Degree of Protection	IP20
