Specifications

Mounting Type	Wall Mount
Operational Temperature Range (°C)	-40 to 70
Humidity	5 to 95%
Brand	NOVARIS

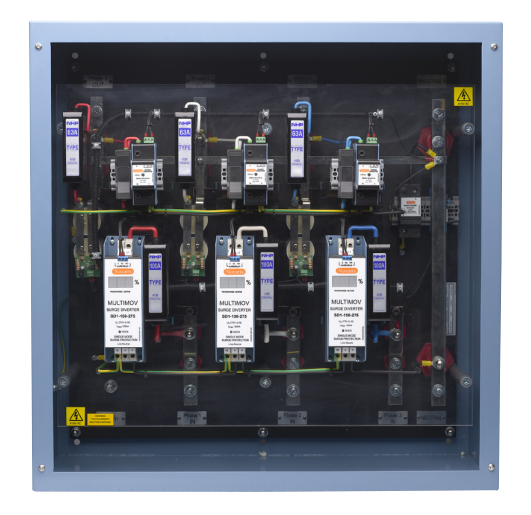

Product Type	Surge Filter
Connection Type	Series
Maximum Continuous Voltage AC (V)	275
Maximum Discharge Current (8/20µs) (kA)	200
Maximum Load Current - I? (A)	630
Modes of Protection	L-N, L-PE, N-PE
No. of Phases	3
Response Time (ns)	Instantaneous
Dimensions (mm)	800W x 1200H x 400D
Degree of Protection	IP55
