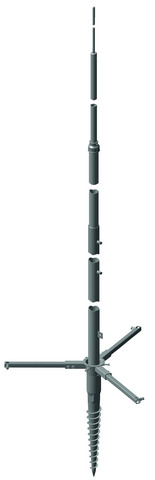

Telescopic lightning protection mast with screw-in foundation For protecting special facilities, such as biogas plants and free field PV systems, against direct lightning strikes The telescopic lightning protection masts with screw-in foundation for a max. gust wind speed of 229 km/h The masts are erected in a screw-in foundation, meaning no excavation or foundation work is required Screw-in foundation is screwed into natural soil and fixed with earth rods without any special preparation

Specifications

Material	Stainless Steel / Aluminium / Hot Dip Galvanized Steel
Max. Gust Wind Speed (km/h)	185
Height Above Ground Level (mm)	7000
Length of Air-Termination Rod (mm)	2500
Diameter of Air-Termination Rod (mm)	22/16/10
Model	Interception rod
Suitable For	Air Termination Rods
Brand	DEHN
Accessory Type	Lightning Protection
Product Type	Accessory
Connection Type	Round conductor
Surface Protection	Hot-dip galvanized
Diameter (mm)	10
Dimensions (mm)	33W x 210H x 29D
Weight (kg)	33.2
Standards and Approvals	EN 62561-(1+2), DIN EN 1991-1-4, DIN EN 1991-1-4/NA
