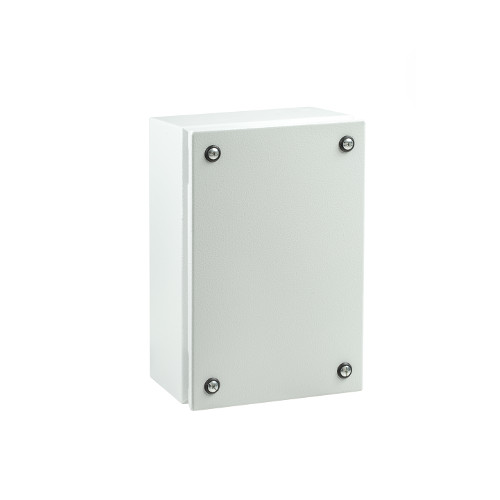

IPD TERM BOX MLD STL GREY RAL7035 200H x 150W x 135D IP65 MST2015135G

Product Code: MST2015135G

  • - Cold-rolled steel EN 10130+A1 - Injected polyurethane sealing gasket - Coated with hardened RAL 7035 polyester paint, embossed, with UV protection - Mounting plate not included - According to low tension directive 2014/35/EU - Complies with: UNE-EN 62208 - UL Certificate UL508A
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Colour RAL 7035
Material Cold-rolled steel EN 10130+A1
Lock Type Lid fastened with fast jackscrew with watertight caps
Ambient Temperature Range (°C) -25 to +60
Supply The body, cover and accessory bag are supplied shrink-wrapped.
Installation Surface
Type of Door Opaque lid
Finish Coated with hardened polyester paint, textured, with UV protection
Mounting Plate Without mounting plate. 2 side brackets
Sealing Gasket Injected polyurethane sealing gasket
Wall Fixing (mm) 160H x 110W
Brand IPD
Product Type Steel terminal box with plain sides
EAN 8431044016702
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC002713
Product End of Life It does not require specific recycling operations.
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Dimensions (mm) 150W x 200H x 135D
Thickness (mm) 1.2
Usable Internal Space (mm) 166H x 118W
Weight (kg) 1.9
Degree of Protection IP66
Standards IEC 62208
Certifications UL508A
Rated Impact Resistance IK10
NEMA Degree of Protection NEMA 1, 4, 12
Directive 2014/35/EU

Description

Mild steel terminal box with a grey RAL7035 polyester powdercoat finish. It has an IP65 rating for protection against dust and water. The box features an injected polyurethane sealing gasket to ensure a tight seal. Its dimensions are 200Hx150Wx135Dmm, with a usable internal space of 166x118mm.
