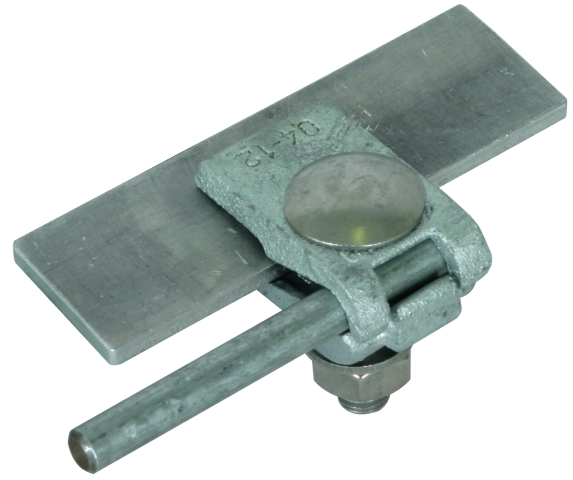

DEHN TERMINAL MCI/TZN CLAMPING RANGE FL 0.4-12mm F. RD 7-10mm LONGI 371008 - Lightning & Surge Protection

Product Code: 371008

Clamp For connection to steel constructions and steel sheets For longitudinal or cross connection

Specifications

Lid Screw Type	Flat round screw
Material	Malleable cast iron
Screw Size	M10
Gross Weight (g)	150
Clamping Range (mm)	0.4-12
Suitable For	Diameter round conductor 4mm
Brand	DEHN
Product Type	Clamps and Connectors
Connector Type	Connection terminal
Surface Protection	Hot-dip galvanized
Dimensions (mm)	5W x 5H x 3D
Weight (kg)	0.15
Weight (g)	148
Rod Diameter (mm)	4 - 10
Standards and Approvals	EN 62561-1

Documents

IPD Product Catalogue

IPD Product Catalogue V17
