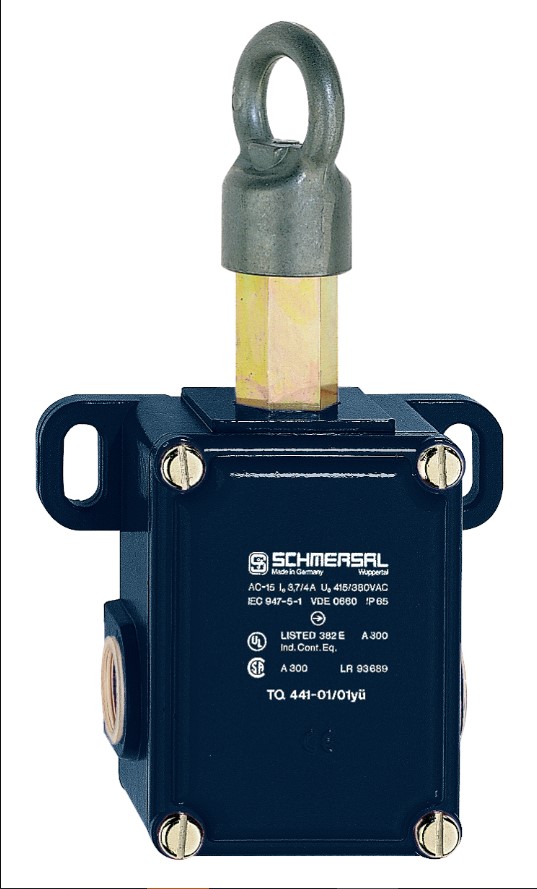

TQ 441-01/01Y-UE-R-1573 HEAVY-DUTY PULL-WIRE SWITCH POSITION SWITCH 101085279

Product Code: 101085279

  • Metal enclosure 2 contacts 2 cable entries Wire up to 25 m long Reset by push button or key possible Available for various actuating forces
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Enclosure Material -Light-alloy die cast
Ambient Temperature Range (°C) -30 °C to + 90 °C
Brand SCHMERSAL
Product Type Position Switch
Contact Material Silver
Maximum Switching Current (A) 4
Maximum Switching Voltage AC (V) 380
Minimum Mechanical Life 30,000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 400
Switching Principle Slow Action
Thermal Test Current (A) 10
Degree of Protection IP65
