| Actuator Type |
Magnet |
| Enclosure Material |
Glass-fibre, reinforced thermoplastic |
| Mounting Type |
Threaded |
| Storage Temperature (°C) |
-25 to 70 |
| Maximum Ambient Temperature (°C) |
80 |
| Maximum Temperature (°C) |
70 |
| Minimum Ambient Temperature (°C) |
0 |
| Minimum Temperature (°C) |
-25 |
| Gross Weight (g) |
3600 |
| Net Weight (g) |
60 |
| Installation Conditions |
Arbitrarily |
| Wire Cross-Section |
0.25 mm |
| Enclosure Coating Material |
Painted |
| Brand |
SCHMERSAL |

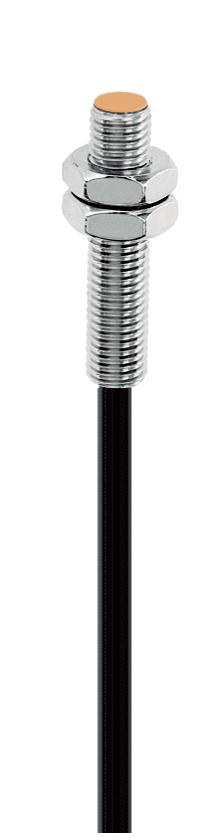

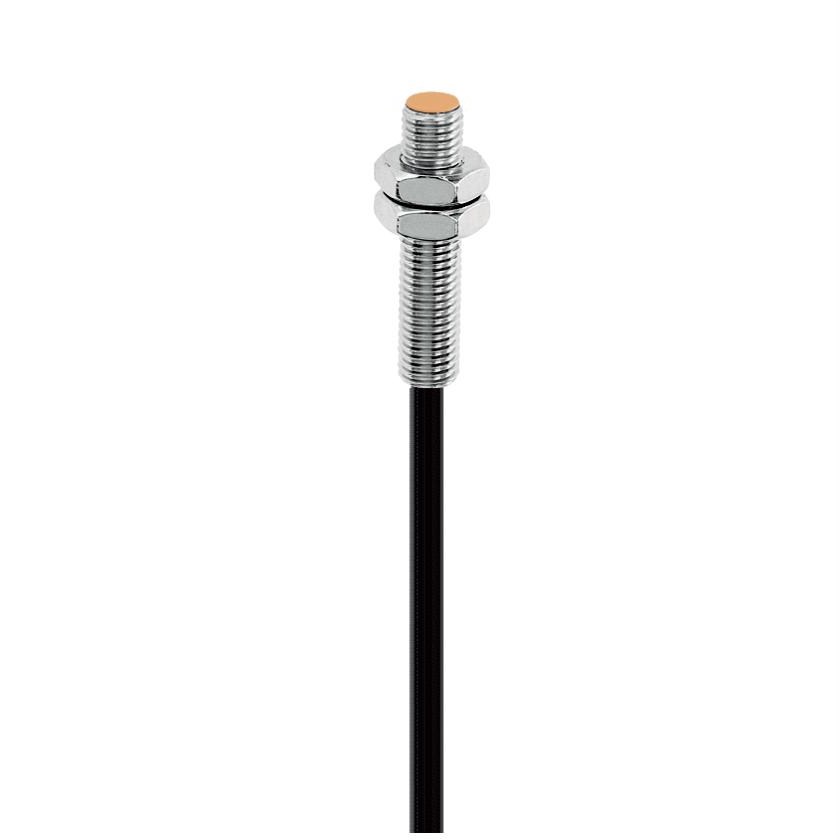

| Product Type |
Proximity Switch |
| Series |
IFL |
| Working Principle |
Magnetic drive |
| Housing Construction Form |
Norm construction design |
| EAN |
4030660000000 |
| eCl@ss Number, Version 9.0 |
27-37-12-11 |
| Coding Level According to EN ISO 14119 |
Low |
| ETIM 7.0 |
EC001038 |
| ETIM 6.0 |
EC000223 |
| eCl@ss Number, Version 11.0 |
27-27-26-03 |
| Protection Class of Operating Resource |
3 |
| Cable Note |
All indications including the conductor ferrules. |
| Recommended Safety Switchgear |
SRB-E-301ST | SRB-E-201LC |
| Recommended Actuator |
RST16-1 | RST-U-2 | RST260-1 |
| Contact Material |
Silver |
| Design of Control Element |
Short-circuit proof, p-type |
| Maximum Actuating Speed (m/s) |
1 |
| Maximum Bounce Duration (ms) |
3 |
| Maximum Cable Cross Section (mm²) |
2.5 |
| Maximum Fuse Rating |
10 A gG D-fuse |
| Maximum Nominal Output Voltage DC (V) |
1.2 |
| Maximum Switching Capacity (W) |
0.24 |
| Minimum Actuating Speed (mm/min) |
60 |
| Minimum Cable Cross Section (mm²) |
0.34 |
| Minimum Mechanical Life |
1000000 Operations |
| Minimum Positive Break Force (N) |
8.5 |
| No. of Auxiliary Contacts |
1 |
| No. of Safety Contacts |
2 |
| Nominal Output Current (A) |
0.2 |
| Overvoltage Category |
3 |
| Positive Break Travel (mm) |
8 |
| Rated Impulse Withstand Voltage (kV) |
4 |
| Rated Insulation Voltage (V) |
300 |
| Rated Maximum Operational Voltage DC (V) |
30 |
| Rated Minimum Operational Voltage DC (V) |
10 |
| Rated Operating Current (mA) |
600 |
| Rated Operational Current (A) |
0.2 |
| Rated Short-circuit Current (A) |
400 |
| Resistance to Shock (g/ms) |
30 / 11 |
| Switching Element |
Opener (NC) |
| Switching Principle |
Slow action |
| Terminal Type |
Cable |
| Cable Length (m) |
5 |
| Thermal Test Current (A) |
0.25 |
| Height (mm) |
28 |
| Width (mm) |
112.5 |
| Utilisation Category |
AC-15 |
| Utilisation Category DC-13 |
0.25 A |
| Sensor Length (mm) |
43 |
| Sensor Height (mm) |
1411 |
| Degree of Protection |
IP67 |
| Pollution Degree |
3 |
| Standards |
EN IEC 60947-5-1 / EN IEC 60947-1 |
