Specifications

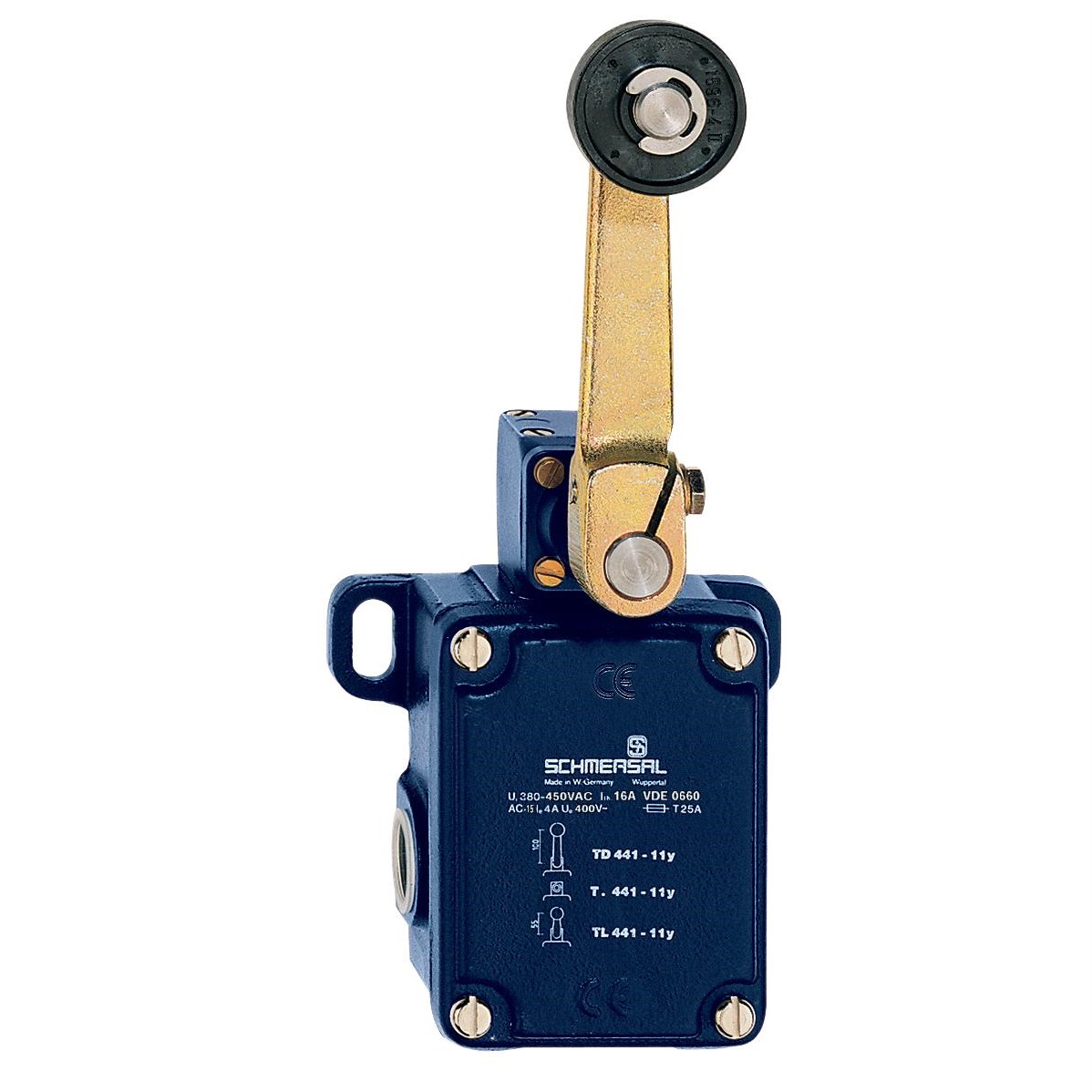

Actuator Type	Roller lever H200
Enclosure Material	Glass-fibre, thermoplastic
Maximum Ambient Temperature (°C)	70
Minimum Ambient Temperature (°C)	-25
Gross Weight (g)	140
Net Weight (g)	70
Brand	SCHMERSAL
Product Type	Limit Switch
Working Principle	Electromechanical
Housing Construction Form	Norm construction design
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-27-04
ETIM 7.0	EC002549
ETIM 6.0	EC002549
eCl@ss Number, Version 11.0	27-27-27-04
Cable Note	All indications including the conductor ferrules.
Contact Material	Silver
Maximum Actuating Speed (m/s)	1
Maximum Cable Cross Section (mm²)	1 x 1.5
Maximum Fuse Rating	6 A gG D-fuse
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	100000 Operations
No. of Auxiliary Contacts	2
No. of Safety Contacts	2
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	400
Switching Element	Opener (NC)
Switching Principle	Snap action
Terminal Type	Connector plug M12, 4-pole, (A-coding)
Utilisation Category	DC-13 \| AC-15
Sensor Length (mm)	33
Sensor Height (mm)	92.5
Degree of Protection	IP65
Standards	EN IEC 60947-5-1 / EN IEC 60947-1
