Specifications

Product Type	Wall-Mounted Single Drive With B'CP
Brand	ABB
kVA Rating	12 kVA
No. of Analog Inputs	2
No. of Digital Inputs	6
No. of Digital Outputs	2
No. of Phases	3
Rated Frequency	47.5/63 Hz
Rated Voltage	380-415 V
No. of Input Phases	3-phase
Nominal Input Voltage	380 ... 415 V
Normal Duty Amps	17 A
Normal Duty kW	7.5 kW
Heavy Duty Amps	12.6 A
Heavy Duty kW	5.5 kW
Control Panel (Keypad)	Yes
Frame Size	R3
Mounting Type	Wall
Depth	249 mm
Height	409 mm
Weight	8.4 kg
Width	155 mm
Operating Temperature	Maximum 40 °C
IP Rating	IP55
Communication Protocols	CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO
Standards and Approvals	UNSPSC: 39122001

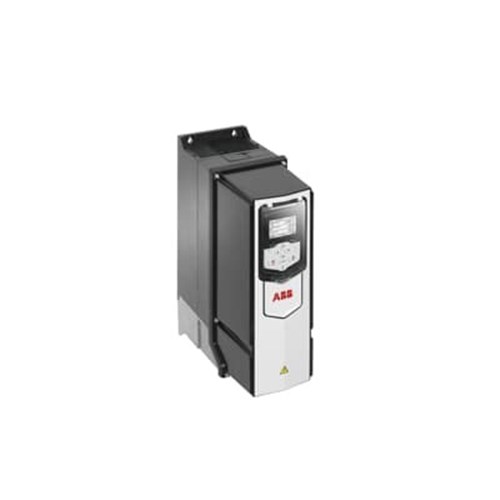

ABB 88001017500 Wall-Mounted Single Drive W/B'CP IP55
