Specifications

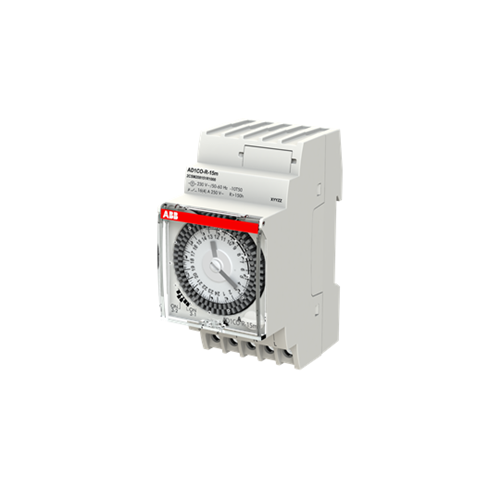

Product Type	Analog timer
Brand	ABB
Series	AG
Function	Daily
Contact Type	Change-Over (CO)
Accuracy	Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 5 minutes
Power Loss	Total 0.5 W
Minimum Switching Time	15 min
Max. Switching Power	4000 W Incandescent Lamp or Halogen High Voltage Lamps 2500 W Fluorescent Lamp 1200 W Low Voltage Halogen Lamp 2000 W Low Consumption Lamp (CFL) 2500 W LED 900 W
Rated Operational Voltage (AC/DC)	230 V
Battery Life	30 year
No. Of Channels	1
Max. Load Capacity	Resistive Load 16 A Inductive Load 4 A
Conductor Cross Section Solid Core	4 mm²
Depth	88 mm
Height	66 mm
Weight	116 g
Width	44 mm
Width in No. of Modular Spacing	2.5
Storage Temperature	-20 ... 70 °C
Operating Temperature	-10 ... 50 °C
IP Rating	Housing IP20
Standards and Approvals	REACH, RoHS, EN 60730-2-7, CE
