Specifications

Product Type	DIGITAL INPUT MODULE
Brand	ABB
Application	Communication and measuring function
Communication Interface	InSite bus(Flat cable)
No. of Inputs	4
Product Compatibility	SCU100 & SCU200
Power Consumption	At Rated Load 1.1 W
Rated Power	1.1 VA
Mounting Type	DIN-Rail
Depth	65 mm
Height	87 mm
Weight	0.083 kg
Width	35.8 mm
IP Rating	IP20
Ambient Temperature	Operation -25 ... 60 °C
Standards and Approvals	IEC 61010-1

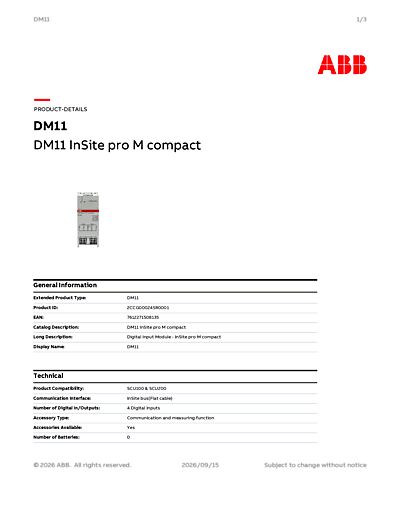

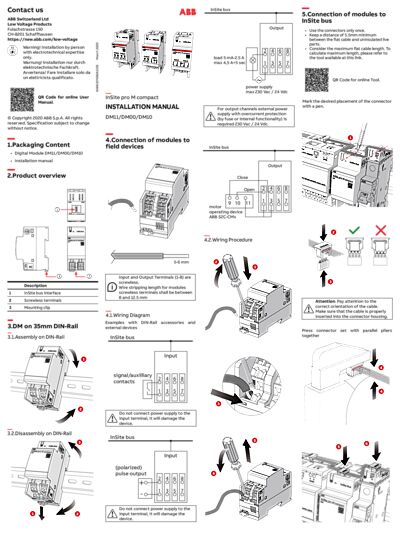

Documents
