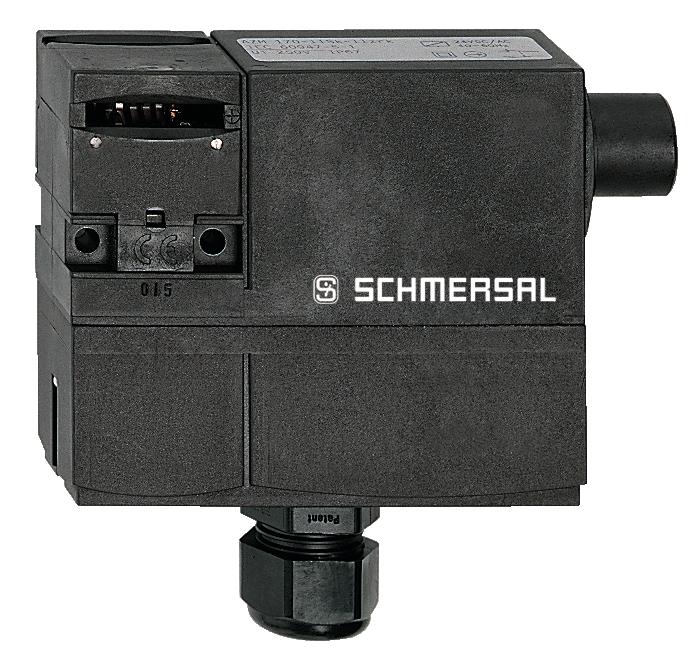

SCHMERSAL AZM170SK-11ZRK-2197-24VAC/DC SOLENOID INTERLOCK 101144260

Product Code: 101144260

The Schmersal AZM170 series solenoid interlock is a robust machine safety solution designed for power-to-unlock operation with a manual release feature. This device offers two actuating directions and includes one auxiliary contact as well as one safety contact, ensuring versatile integration into various safety systems. Equipped with screw terminals for secure connections, the interlock has both normally open (NO) and normally closed (NC) contacts to fit different circuit requirements. It can handle a thermal test current of 6 A and operates efficiently at a rated control voltage of 24 VAC/DC. The unit is rated for utilisation categories AC-15 at 230 VAC up to 4 A and DC-13 at 24 VDC up to 4 A, making it suitable for a wide range of applications in machine safety.

Technical Specifications

Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 High
eCl@ss Number, Version 11.0 27-37-12-11
eCl@ss Number, Version 9.0 27-37-12-10
ETIM 6.0 EC000221
ETIM 7.0 EC000222
Gross Weight (g) 8130
Housing Construction Form Norm construction design
Maximum Actuating Speed (m/s) 2
Maximum Fuse Rating 6 A gG D-fuse quick blow
Maximum Temperature (°C) 60
Minimum Actuating Speed (mm/min) 1
Minimum Ambient Temperature (°C) -25
Minimum Positive Break Force (N) 20
Minimum Temperature (°C) -25
Net Weight (g) 340.34
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Sensor Height (mm) 145.5
Sensor Length (mm) 38
Switching Element Normally open contact (NO)
Switching Principle Snap action
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Wire Cross-Section 13 AWG
Working Principle Electromechanical
Brand SCHMERSAL
Actuator Type Pull strap
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Coating Material Painted
Enclosure Material Glass-fibre, reinforced thermoplastic
Height (mm) 69
Maximum Ambient Temperature (°C) 50
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1.5
Minimum Mechanical Life 1000000 Operations
Overvoltage Category 3
Pollution Degree 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 400
Series AZM170
Standards EN IEC 60947-5-3 / BG-GS-ET-14
Storage Temperature (°C) 25 to 85
Terminal Type Cable
