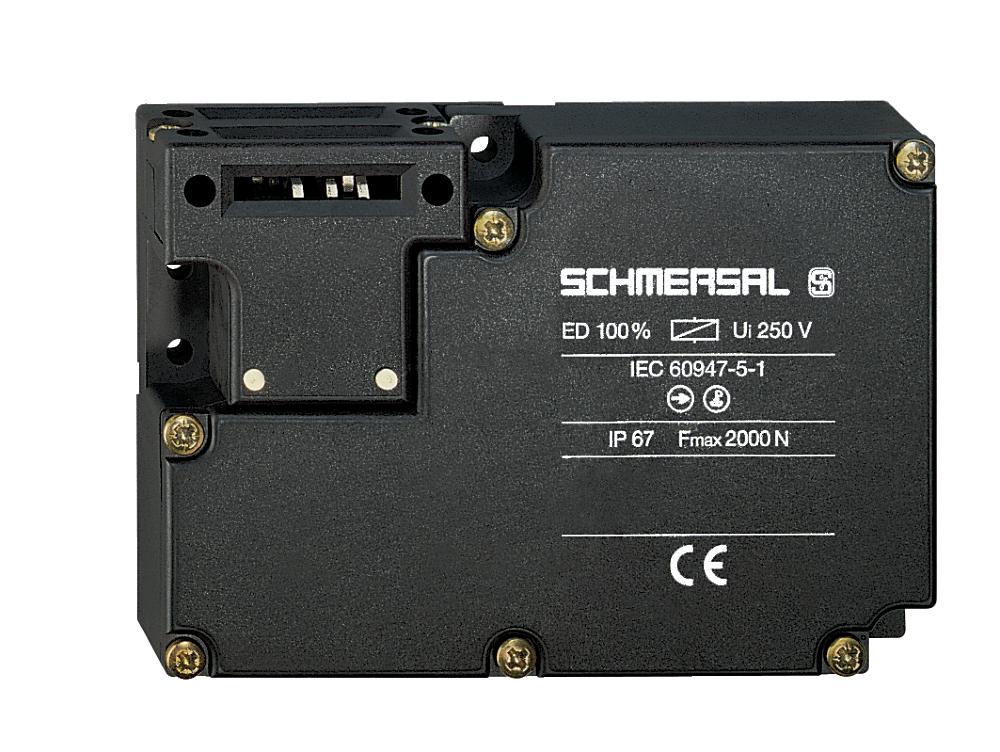

SCHMERSAL AZM161SK-12/12RKTU-024 SOLENOID INTERLOCK 101187849

Product Code: 101187849

  • Key Features: Solenoid interlock with power to unlock feature Equipped with emergency exit and manual release options Three actuating directions for versatile application Two auxiliary contacts and four safety contacts for comprehensive control Screw terminal connectors for secure wiring Normally open (NO) and normally closed (NC) contact configurations available Thermal test current of 6 A ensures reliable operation under thermal stress
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Actuator Type Angle roller lever
Enclosure Material Light alloy die-casting
Maximum Ambient Temperature (°C) 80
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -25
Minimum Temperature (°C) -25
Gross Weight (g) 595
Net Weight (g) 260
Brand SCHMERSAL
Product Type Solenoid
Series AZM161
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-03
ETIM 7.0 EC000030
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-27-26-92
Contact Material AgCdO
Maximum Actuating Speed (m/s) 1
Maximum Cable Cross Section (mm²) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Cable Cross Section (mm²) 0.25
Minimum Mechanical Life 50000 Operations
No. of Safety Contacts 4
Rated Impulse Withstand Voltage (kV) 0.8
Rated Insulation Voltage (V) 250
Switching Element Opener (NC)
Switching Principle Slow action with staggered contacts
Terminal Type IDC method of termination
Utilisation Category AC-15
Utilisation Category DC-13 24 VDC
Sensor Length (mm) 38
Sensor Height (mm) 178
Degree of Protection IP67
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN ISO 14119

Description

The Schmersal AZM161 Series solenoid interlock is a robust machine safety solution designed to ensure secure power locking with an emergency exit and manual release feature. This device offers flexibility with three actuating directions and integrates seamlessly into your safety system with four safety contacts and two auxiliary contacts. It's equipped with screw terminals for reliable connections, both normally open (NO) and normally closed (NC) contact configurations. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, it meets utilisation categories AC-15 at 230 VAC, 4 A, and DC-13 at 24 VDC, 2.5 A, ensuring compatibility with various control systems. The AZM161 is engineered for dependable operation in complex machine safety applications.
