Specifications

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 3
Air Circuit Breaker (Withdrawable)	No
Electrical Endurance	10000 cycles at Ue up to 440 V, 8000 cycles at Ue 500 to 690 V
Max. Rated Operation AC Voltage (Ue)	690 V AC
Rated Current (In)	2000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V AC
Short-time Withstand Current (Icw), 1 sec	66 kA
Short-time Withstand Current (Icw), 3 sec	50 kA
Type of Electrical Connection of Main Circuit	Rear flat Horizontal
Frame Size Rating	2500 A
Power Loss	212 W
Rated Frequency	50/60 Hz
No. of Poles	3
Max. Vibration Acceleration	0.7 g
Mechanical Endurance	25000 cycles
Height	371 mm
Weight	41000 g
Width	276 mm
Rated Surrounding Temperature Without Derating	40 °C
Operating Temperature	-25 to 70 °C
IP Rating	IP20
Max. Altitude Before Derating	2000 m
Standards and Approvals	EN 60947-1, EN 60947-2, EN IEC 60947-3, EN IEC 63000, IEC 60947-1, IEC 60947-2, IEC 60947-3, CE

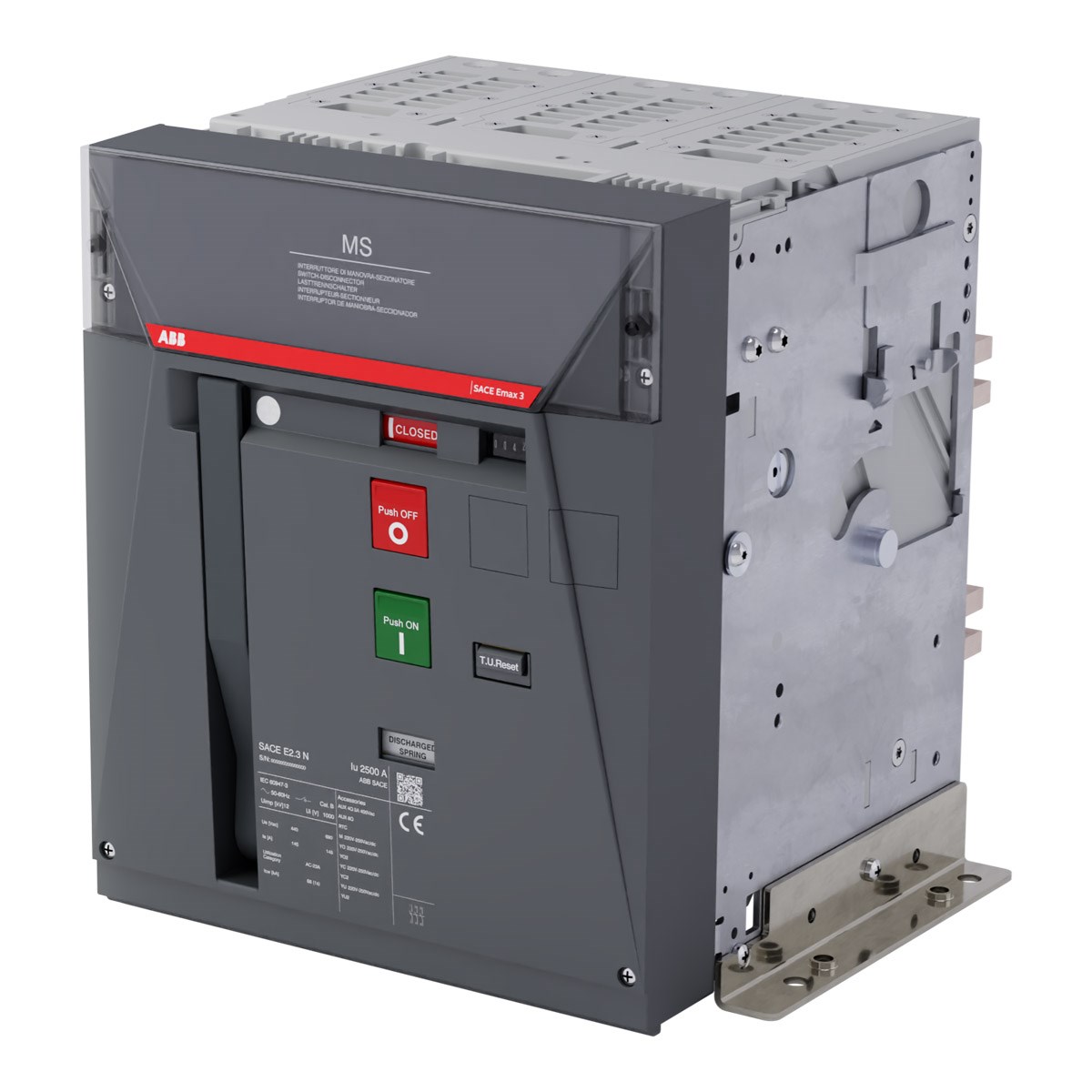

ABB 1SDA125906R1 Switch Disconnector 2000A 3P 690VAC 66kA Icw/1s Fixed SACE Emax 3
