Specifications

Product Type	Withdrawable
Brand	ABB
Series	SACE Emax 3
Rated Current (In)	5000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Uninterrupted Current (Iu)	5000 A
Rated Voltage	690 V
No. of Poles	3
Rated Operational Voltage (AC)	690 V
Connecting Capacity	5000 mm2
Frame Size	E6.3
Mounting Type	W FP; V version; HR HR
Depth	383 mm
Height	425 mm
Weight	87 kg
Width	803 mm
Standards and Approvals	IEC

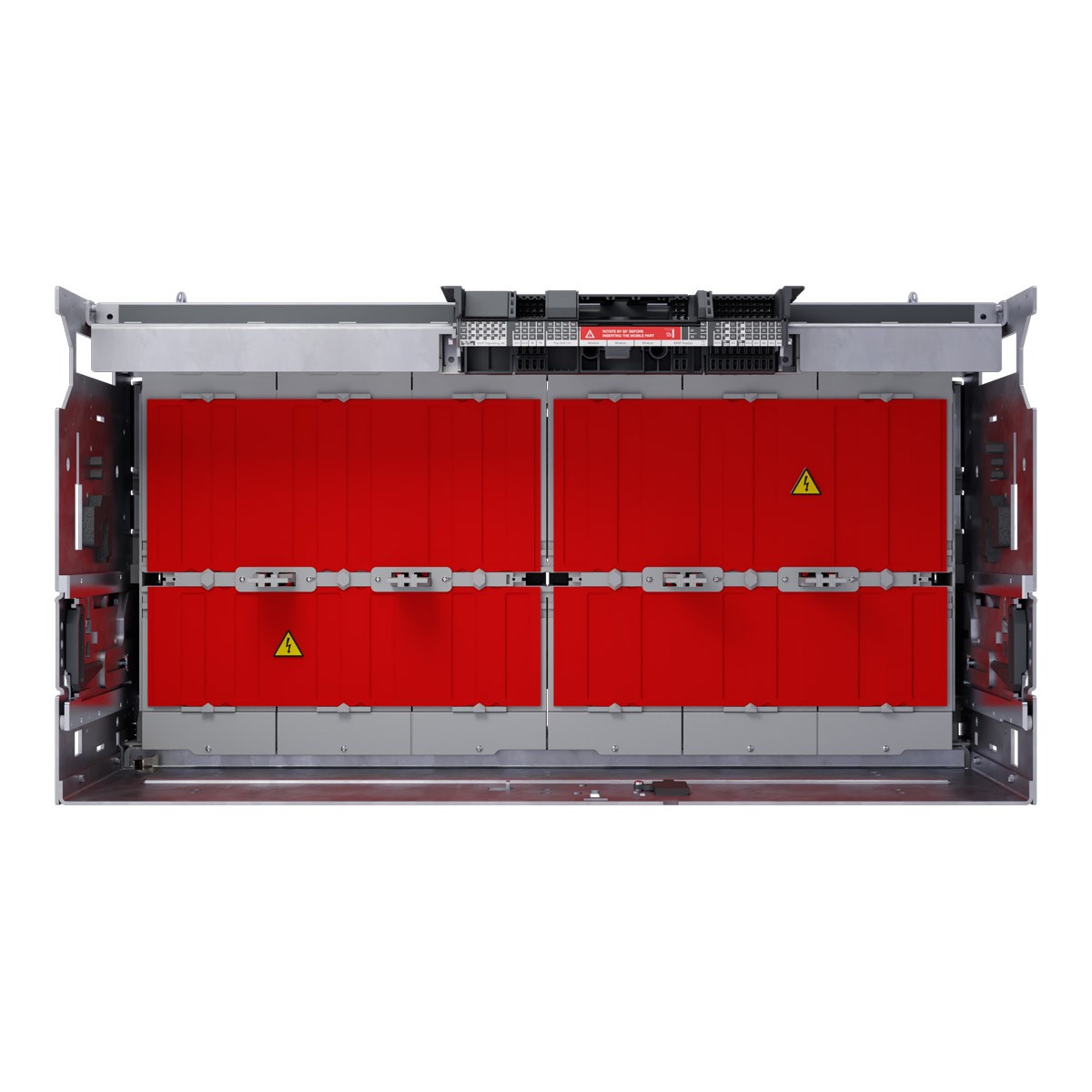

ABB 1SDA126221R1 Withdrawable Circuit Breaker Fixed Part 5000A 3P E6.3 Horizontal Rear Connection SACE Emax 3
