Specifications

Product Type	Withdrawable
Brand	ABB
Series	SACE Emax 3
Rated Current (In)	6300 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Uninterrupted Current (Iu)	6300 A
Rated Voltage	690 V
No. of Poles	4
Rated Operational Voltage (AC)	690 V
Connecting Capacity	6000 mm2
Frame Size	E6.3
Mounting Type	W FP; X version; HR HR
Depth	383 mm
Height	425 mm
Weight	100 kg
Width	929 mm
Standards and Approvals	IEC

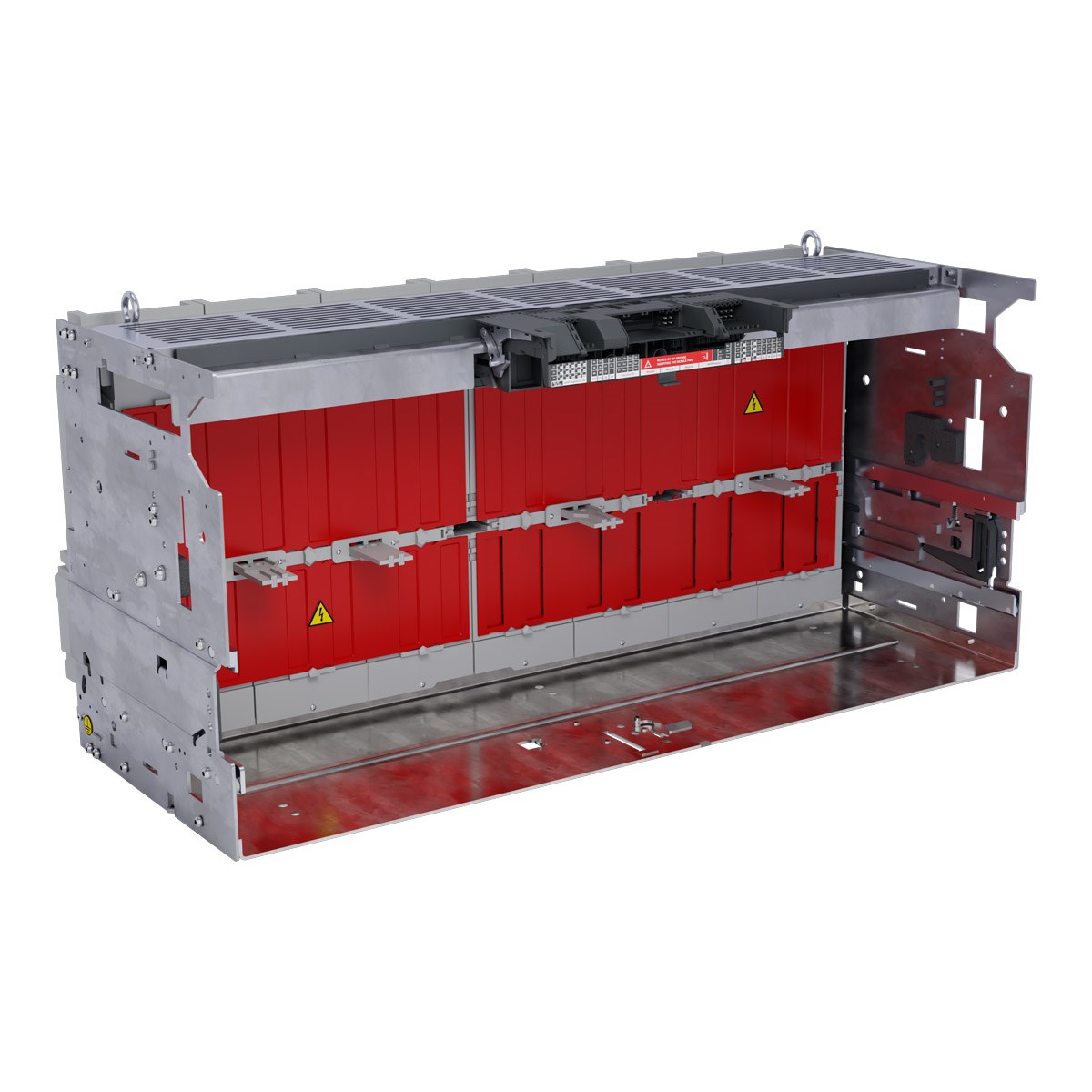

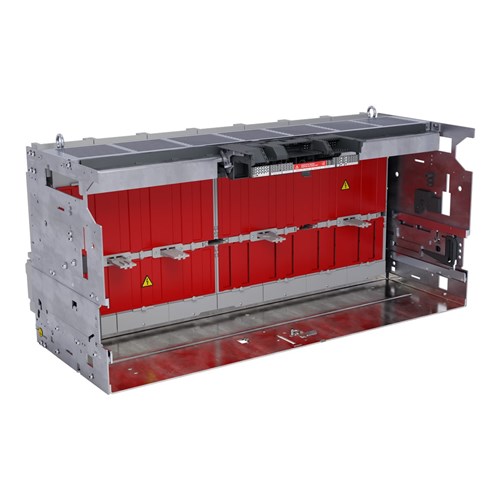

ABB 1SDA126225R1 Withdrawable Circuit Breaker Fixed Part 6300A 4P E6.3 Horizontal Rear Connection SACE Emax 3
