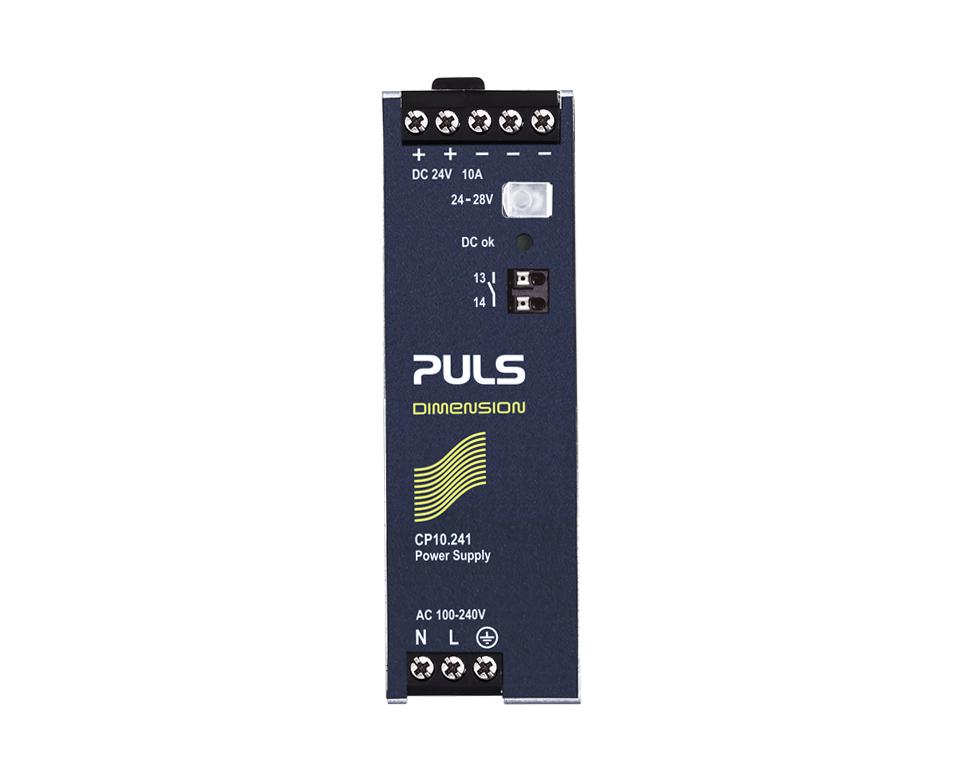

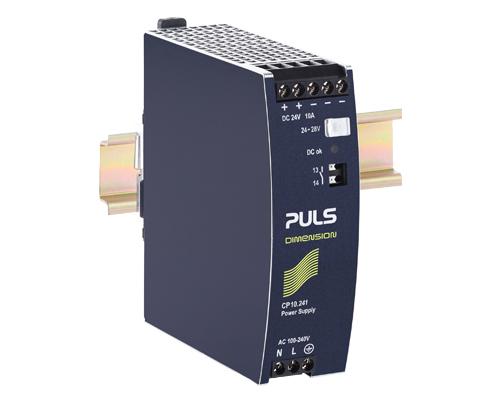

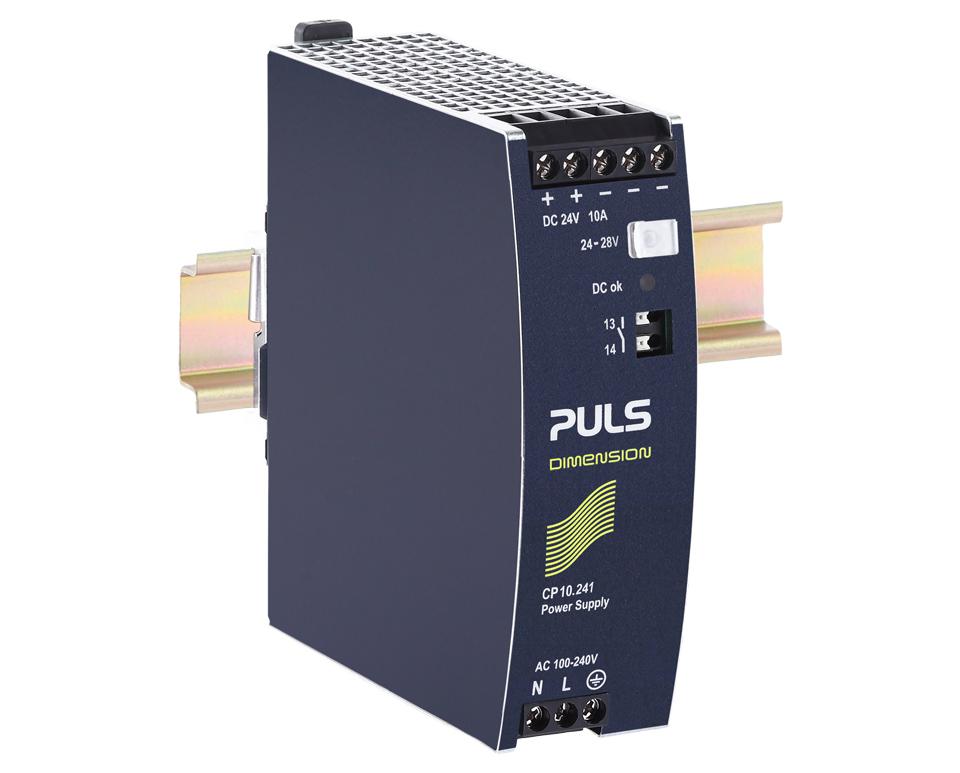

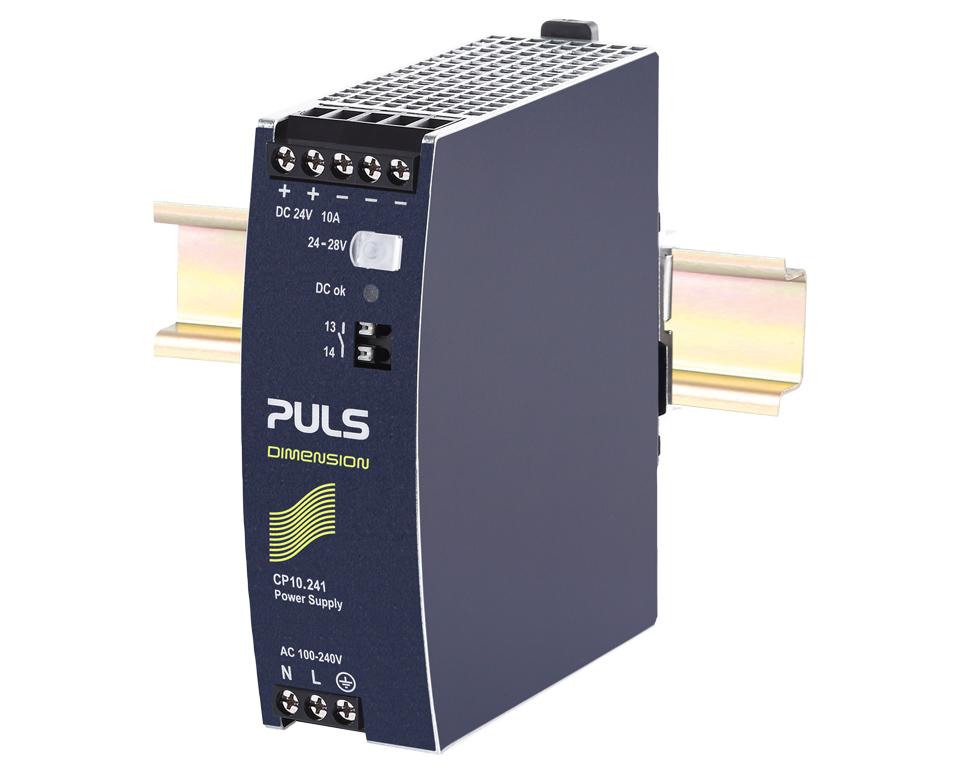

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 10A 240W CP10.241

Product Code: CP10.241

  • AC 100-240V Wide-range input Width only 39mm Efficiency up to 95.2% Excellent partial load efficiency 20% output power reserves Safe HiccupPLUS overload mode Easy fuse breaking due to high overload peak current Active power factor correction (PFC) Minimal inrush current surge Full power between -25°C and +60°C DC-OK relay contact
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Conformal Coating No
Brand PULS
Product Type Single-Phase
Series C series
Range DIMENSION
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS01
Warranty Period (Months) 36
AC Input Type Wide-range
Connection Type Screw terminals
DC-OK Signal Yes
Derating 6 W/°C
Derating Temperature (°C) > +60
Efficiency 95.20%
External Input Fuse Recommendation B-6 A / C-6 A
Family DIMENSION
Harmonic Correction Active
Input Inrush Current (A) 6 / 9
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 10 - 8.6
Output Power (W) 240
Output Voltage (V) 24-28
Power Factor 0.97
Power Loss (W) 12.1
Power Reserve Type Power Boost
Power Reserves 20%
Rated Current (A) 10
Special Application Hazardous location, Marine, Semiconductor
Dimensions (mm) 39W x 124H x 117D
Use In Crosslinking Yes
Weight (g) 600
Degree of Protection IP20
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

Description

AC 100-240V wide-range input, 39mm width, up to 95.2% efficiency, excellent partial load efficiency, 20% output power reserves, safe HiccupPLUS overload mode, easy fuse breaking for high overload peak current, active power factor correction (PFC), minimal inrush current surge, full power between -25°C and +60°C, DC-OK relay contact.
