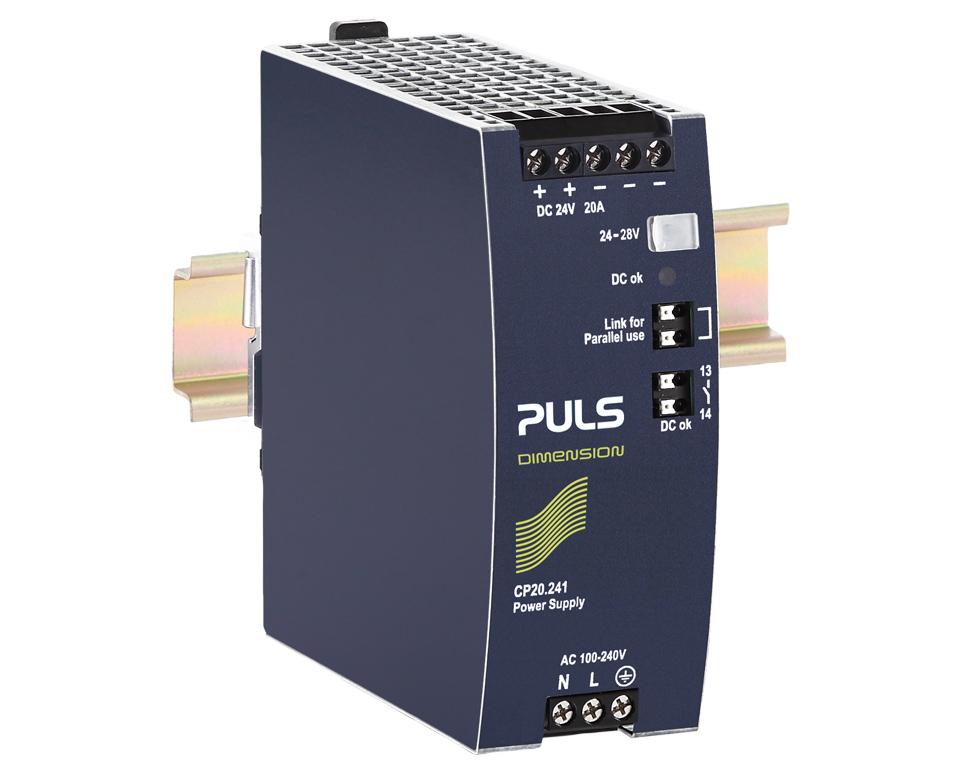

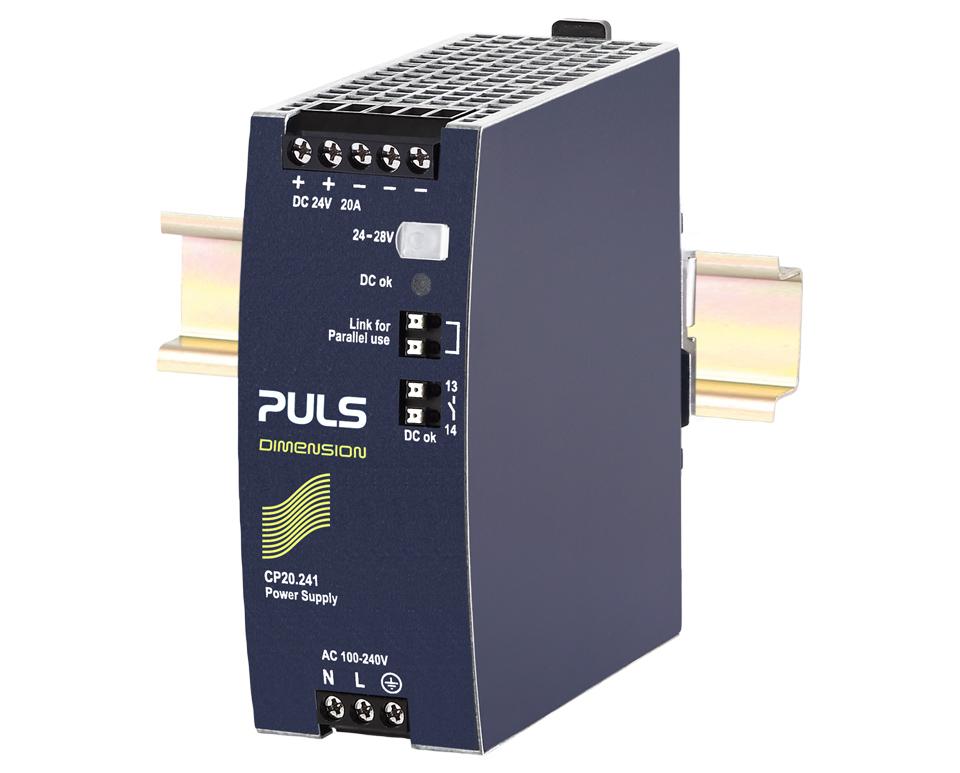

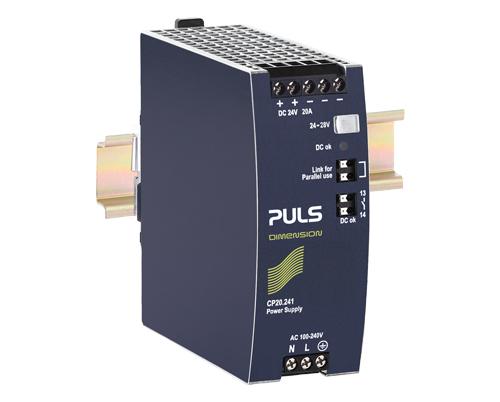

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 20A 480W CP20.241

Product Code: CP20.241

AC 100-240V Wide-range input, 48mm width, and up to 95.6% efficiency. Excellent partial load efficiency with 20% output power reserves. Easy fuse breaking with 3 times nominal current for 12ms. Safe HiccupPLUS overload mode and active power factor correction (PFC). Minimal inrush current surge and full power between -25°C and +60°C. Includes DC-OK relay contact and current sharing feature for parallel use.

Technical Specifications

Brand PULS
AC Input Type Wide-range
Conformal Coating No
Connection Type Screw terminals
Country of Origin China / Czech Republic
Customs Tariff Number 85044083
DC-OK Signal Yes
Degree of Protection IP20
Derating 12 W/°C
Derating Temperature (°C) > 60
Dimensions (mm) 48W x 124H x 127D
E Classification E-CS01
Efficiency 95.60%
External Input Fuse Recommendation B-10 A / C-10 A
Family DIMENSION
Harmonic Correction Active
Input Inrush Current (A) 10 / 4.5
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Output Current Range (A) 20 - 17.1
Output Power (W) 480
Output Voltage (V) 24-28
Power Factor 0.98
Power Loss (W) 22.1
Power Reserve Type Power Boost
Power Reserves 20%
Range DIMENSION
Rated Current (A) 20
Series C series
Special Application Hazardous location, Semiconductor
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, SEMI F47, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Use In Crosslinking Yes
Warranty Period (Months) 36
Weight (g) 830
