Specifications

Product Type	Power Supply
Brand	PULS
Series	C
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	102 mm
Derating Temperature	3 W/deg C
Efficiency	94.3%
Harmonic Correction	Active
Height	124 mm
Input Type	Wide-Range
Inrush Current	4 A, 4 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	1
Power Factor	0.91
Power Loss	7.3 W
Power Reserve Type	20%
Range	DIMENSION
Rated Current	5 A
Rated Power	120 W
Rated Voltage	110-150 VDC, 24 VDC
Ripple and Noise Voltage	50 mVpp
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, SEMI F47, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Weight	440 g
Width	32 mm

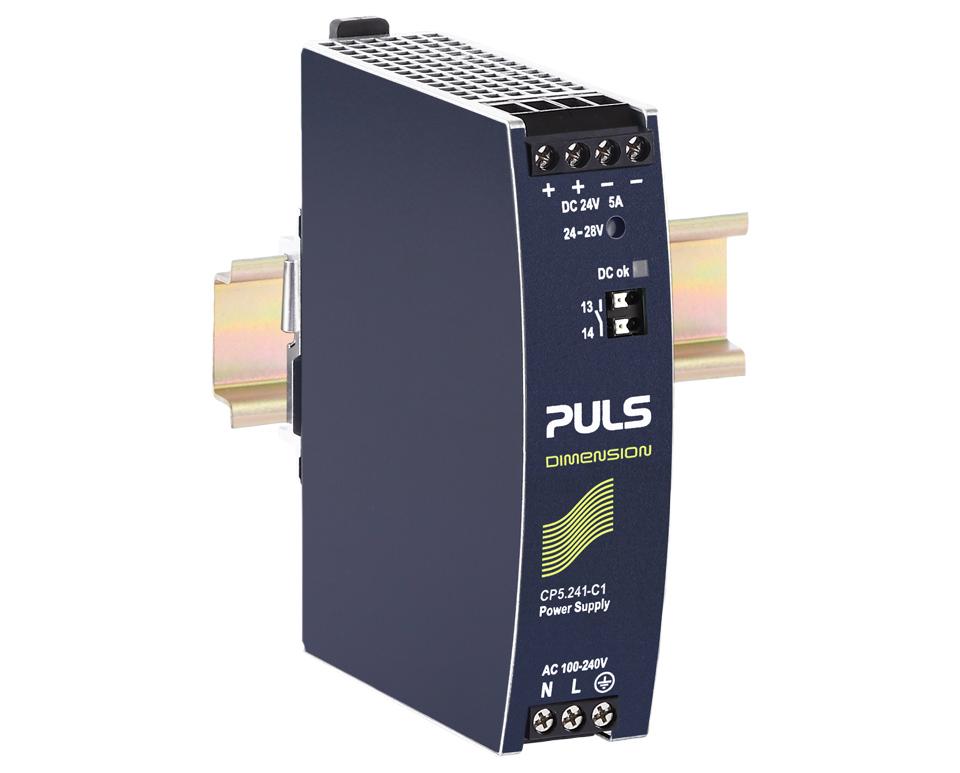

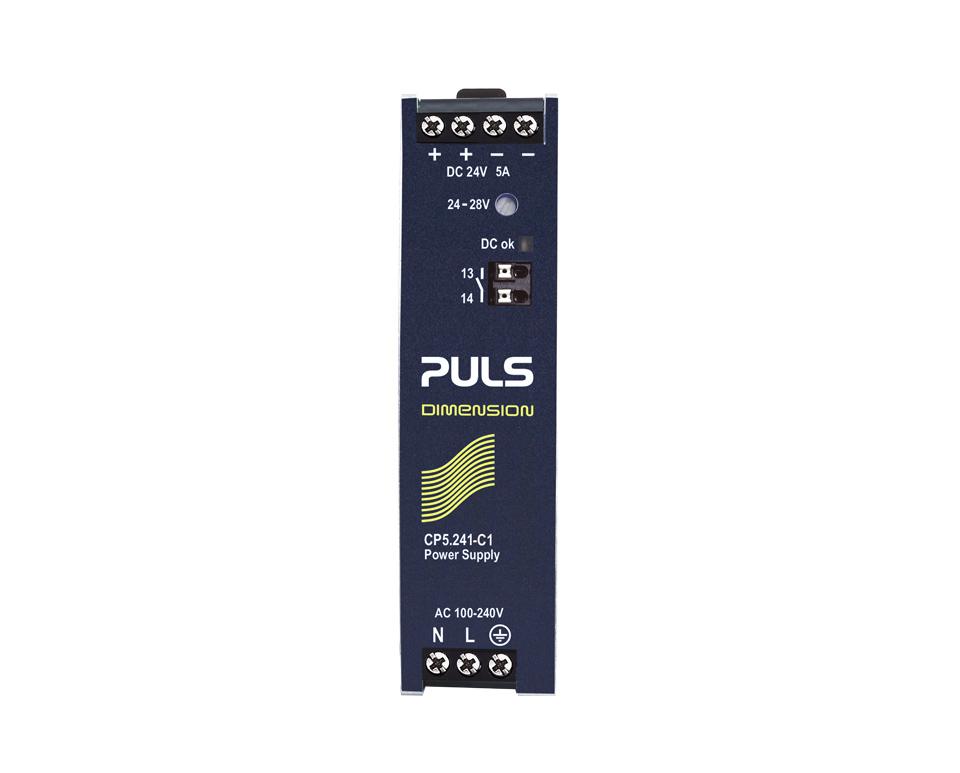

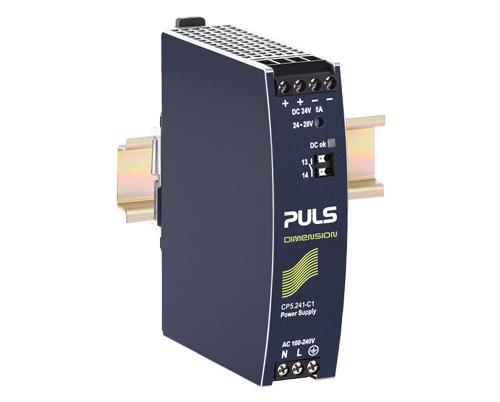

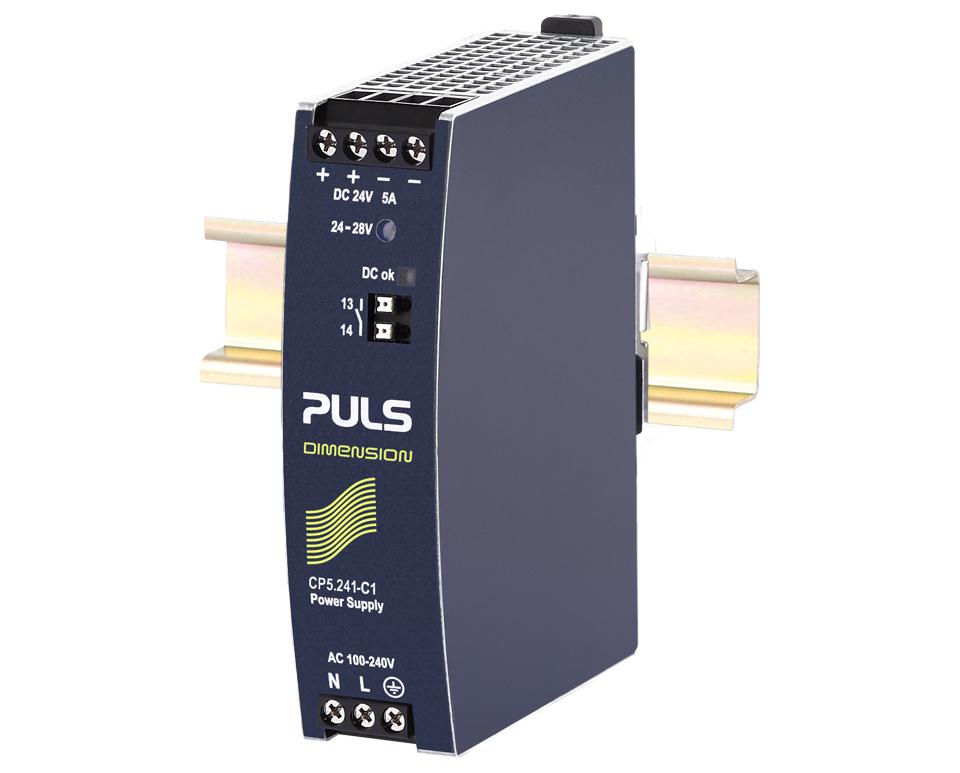

Puls CP5.241-C1 Power Supply 1PH 110-150VDC 24VDC 5A 120 Watt 7.3 Watt DIN Rail Mount Screw Terminal IP20
