Specifications

Product Type	SPLIT-CORE CURRENT TRANSFORMER
Brand	ABB
Application	Used in connection with INS-E3 energy meter module
No. of Phases	1-phase
Product Compatibility	INS-E3, SCU200
Rated Current (In)	20 A
Accuracy Class	Class 1 (EN 61869-2)
Current Type	AC
Depth	25.8 mm
Height	40 mm
Weight	0.045 kg
Width	22.8 mm
Ambient Temperature	Operation -25 ... 60 °C

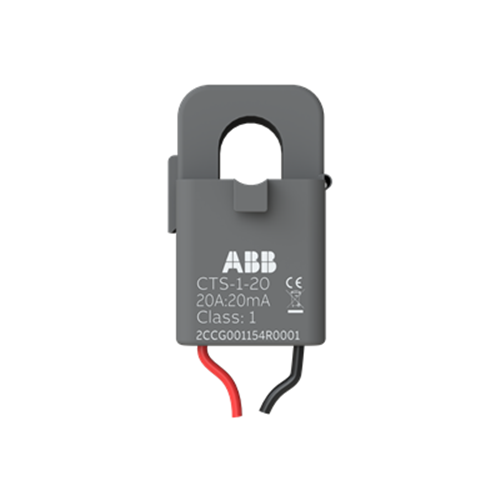

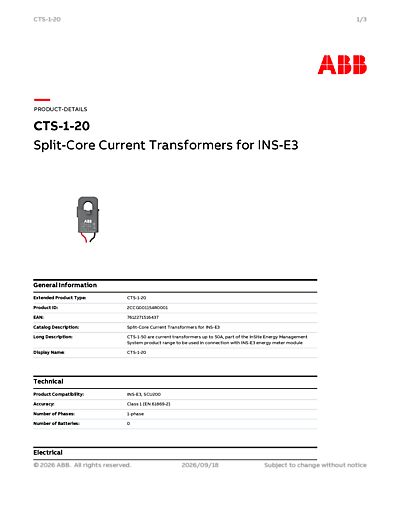

ABB CTS-1-20 SPLIT-CORE CURRENT TRANSFORMERS UP TO 20A FOR INS-E3
