Product Code: DSN201EC10A30

Residual current circuit breakers with overcurrent protection are versatile devices designed for residential, commercial, and industrial applications. They operate at 240 V AC with a rated current of 10A and a rated residual current of 30 mA. These circuit breakers have a Type A, C curve and can handle a breaking capacity of 6 kA. With a rated impulse withstand voltage of 6 kV and a maximum surge current of 2.5 kA, they provide reliable protection against electrical faults. The circuit breakers are one module wide and feature a switched neutral for added convenience. They offer a degree of protection IP20, ensuring safety in various environments.

Impulse Withstand Voltage (kV/1.2µS)	6
Brand	ABB
AC Voltage (V)	240/415
Ambient Temperature Range (°C)	-25 to 40
Current Rating (A)	10
Curve Type	C
Degree of Protection	Housing - IP40, Terminals - IP20
Dimensions (mm)	86H × 70D × 17.8W
Family	DSN201E
Icn-Rated Short Circuit Capacity (kA)	10
Mounting Type	DIN Rail
No. of Modules	1
No. of Poles	1P+N
Poles	1P+N
Rated Current (A)	10
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Voltage AC (V)	240
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	10
Residual Current Type	A
Series	DSN201E
Standards and Approvals	IEC/EN 61009-1,IEC 61009-2-2, AS/NZS 61009.1
Trip Curve	C Curve
Type of Residual Current	A

DIN MCB

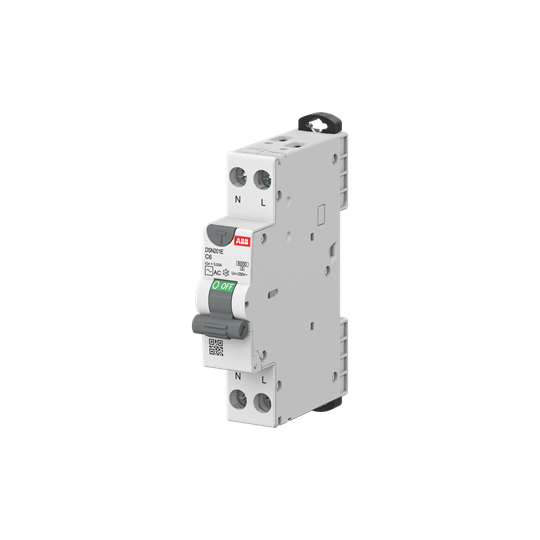

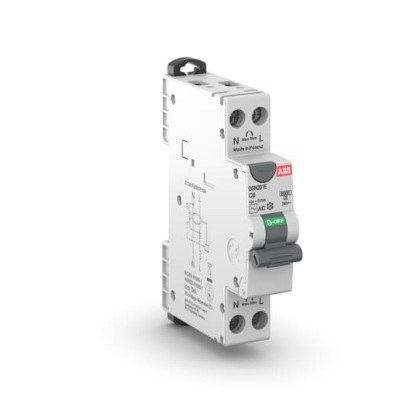

ABB RCBO 6kA 1P+N 10A C CURVE TYPE A 30mA 1 MODULE DSN201EC10A30
