Brand	PULS
AC Input Type	Wide-range
Conformal Coating	No
Connection Type	Push-in clamps
Country of Origin	China / Czech Republic
Customs Tariff Number	85044083
DC-OK Signal	Yes
Degree of Protection	IP20
Derating	0.96 W/°C
Derating Temperature (°C)	+60 to +70
Dimensions (mm)	22.5W x 90H x 91D
E Classification	E-CS01
Efficiency	90.60%
External Input Fuse Recommendation	B-6 A / C-4 A
Family	PIANO
Hold Up Time (ms)	162
Input Inrush Current (A)	14 / 40
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Integrated Decoupling Function	No
Material	Polycarbonate
Maximum Ripple and Noise Voltage (mVpp)	50
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-10 to 70
Output Current Range (A)	1.5 - 1.2
Output Power (W)	36
Output Voltage (V)	24-28
Power Factor	0.46
Power Loss (W)	3.7
Range	PIANO
Rated Current (A)	1.5
Series	PIM series
Standards and Approvals	EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, UL 1310 NEC Class 2, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Use In Crosslinking	Yes
Warranty Period (Months)	36
Weight (g)	140

Industrial Power Supplies

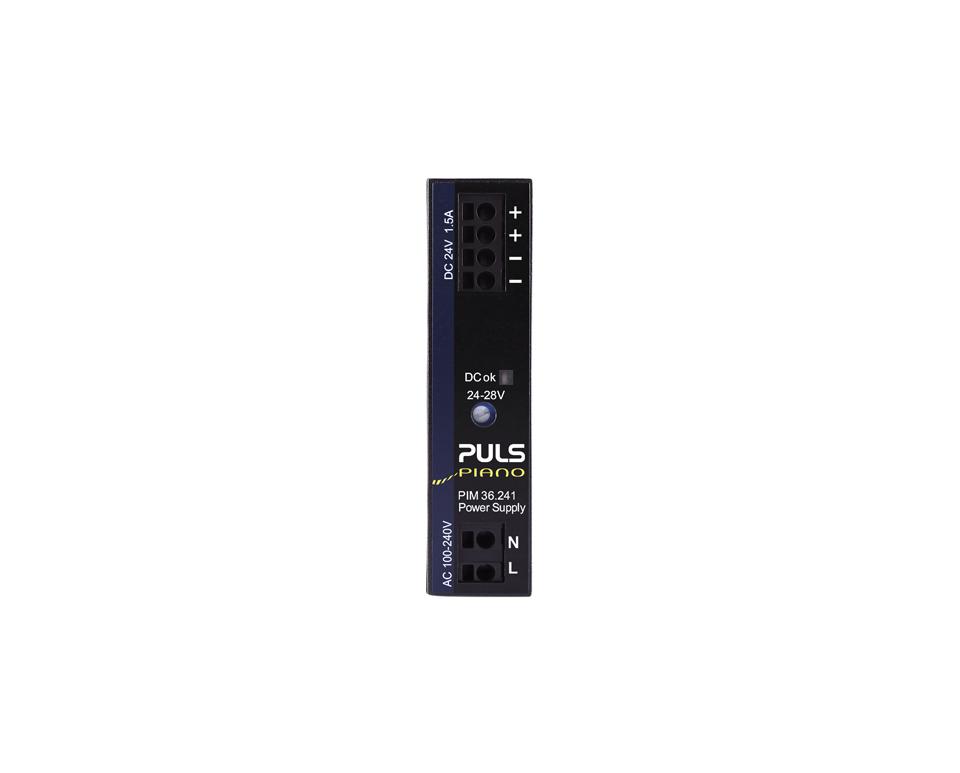

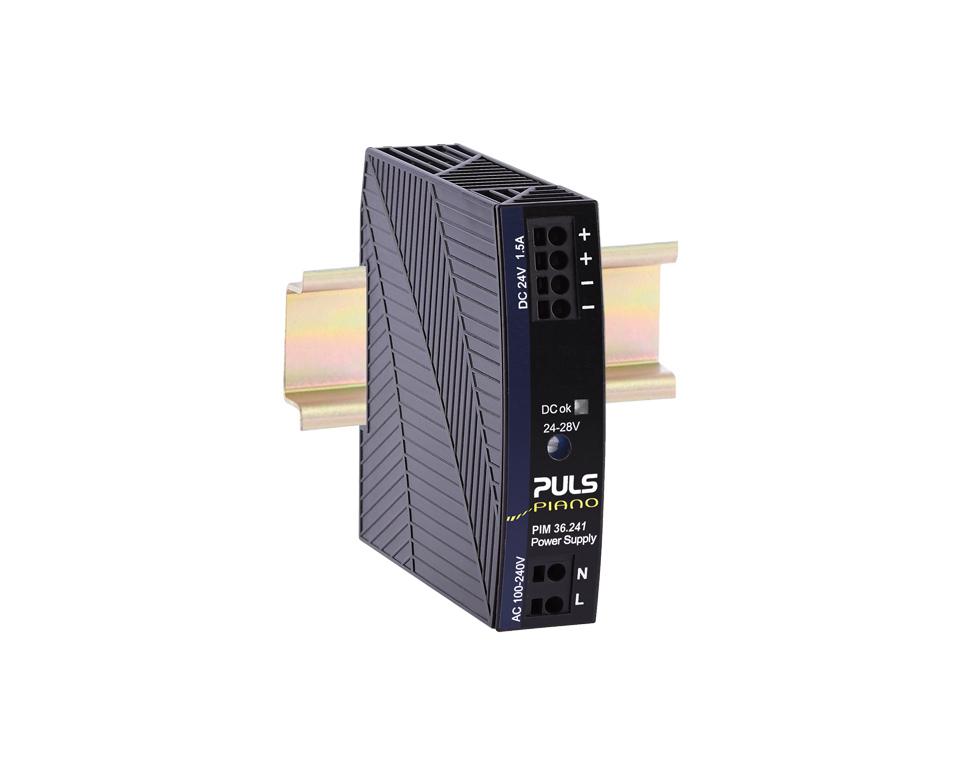

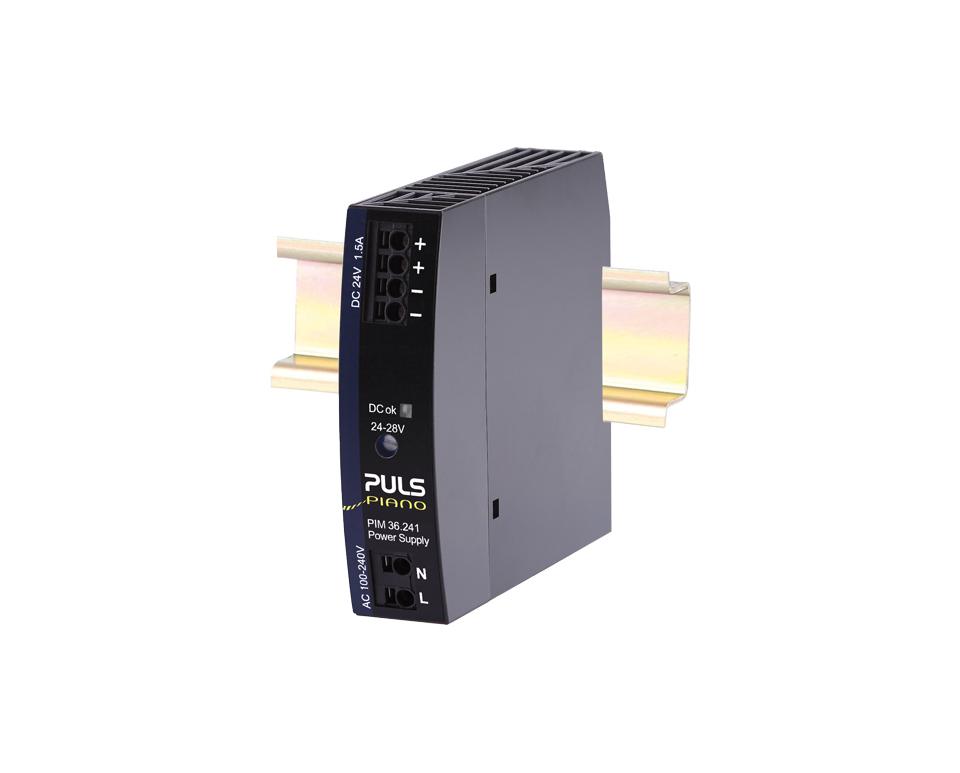

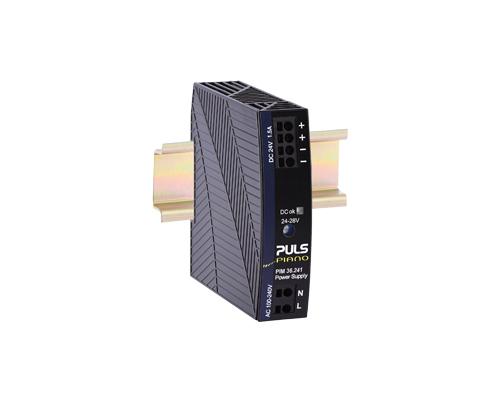

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 1.5A 36W PIM36.241
